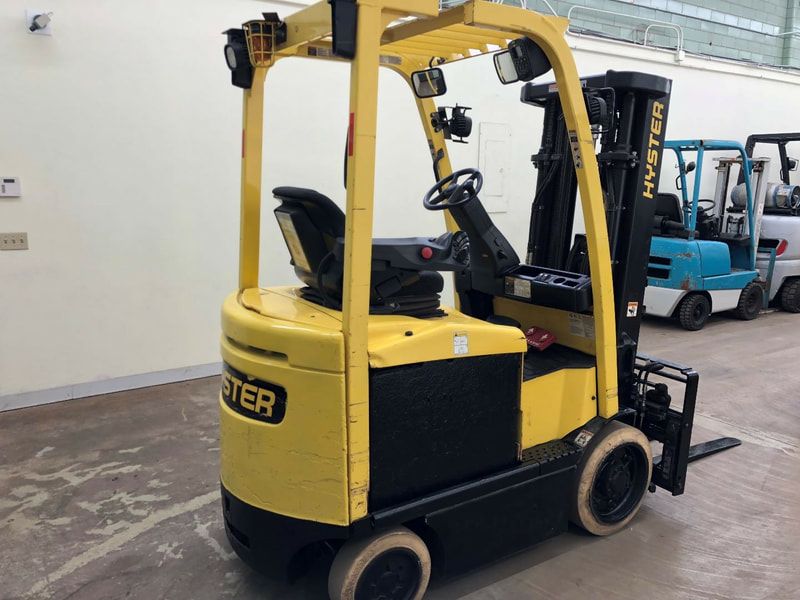

Hyster E45XN
Contents:
Dimensions
| Length To Fork Face | 6.62 ft in (2016 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 6.85 ft in (2085 mm) |
| Wheelbase | 4.04 ft in (1230 mm) |
| Ground Clearance | 3.59 in (91 mm) |
| Height To Top Of Overhead Guard | 7.38 ft in (2248 mm) |
| Front Tread Range | 35.12 in (892 mm) |
| Gradeability | 39 % |
| Rear Tread Range | 37.01 in (940 mm) |
| Right Angle Stack | 10.98 ft in (3344 mm) |
| Turning Radius | 5.7 ft in (1735 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 4499.64 lb (2041 kg) |
| Lift Speed | 100 ft/min (30.48 m/min) |
| Lower Speed | 100 ft/min (30.48 m/min) |
Engine
| Engine Make | Hyster |
| Engine Model | E45XN |
| Power | 24.7 hp (18.5 kw) |
Operational
| Auxiliary Hydraulic Flow | 10.6 gal/min (40 L/min) |
| Operating Weight | 6620.5 lb (3003 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11 mph (17.6 km/h) |
| Operating Voltage | 36 V |
| Front Tire Size | 21 x 7 x 15 |
| Rear Tire Size | 16 x 5 x 10.5 |
| Axle Load - Front | 3944.1 lb (1789 kg) |
| Axle Load - Rear | 5968 lb (2707 kg) |
Hydraulic
| Relief Valve Pressure | 2250 psi (15513.2 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
