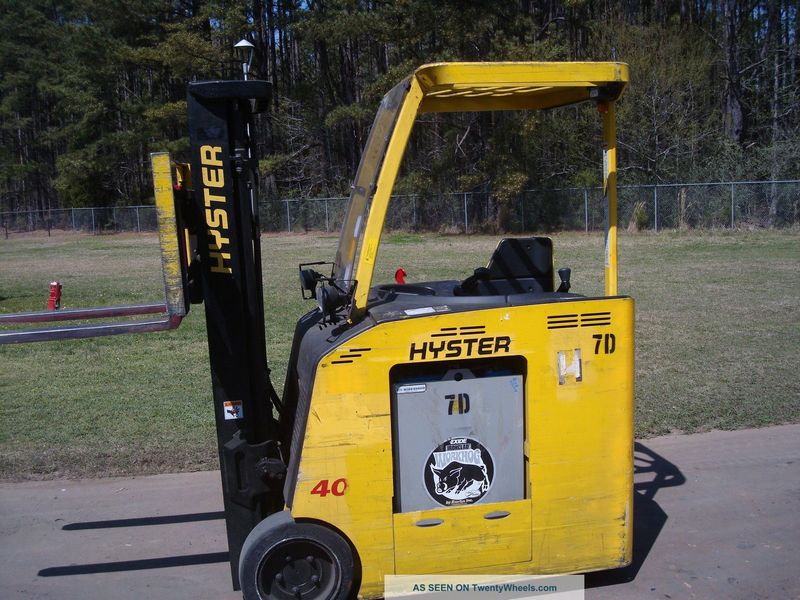

Hyster E40HSD
Contents:
Dimensions
| Length To Fork Face | 5.82 ft in (1773 mm) |
| Overall Width | 3.51 ft in (1067 mm) |
| Overall Height - Mast Lowered | 6.83 ft in (2080 mm) |
| Wheelbase | 3.87 ft in (1178 mm) |
| Ground Clearance | 4.1 in (104 mm) |
| Height To Top Of Overhead Guard | 7.32 ft in (2231 mm) |
| Max Fork Height | 10.61 ft in (3231 mm) |
| Right Angle Stack | 9.9 ft in (3015 mm) |
| Turning Radius | 4.79 ft in (1460 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 295.28 ft/min (90 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 3999.19 lb (1814 kg) |
| Lift Speed | 311.69 ft/min (95 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 9237.4 lb (4190 kg) |
| Tire Type | Poly 92D |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 7.1 mph (11.3 km/h) |
