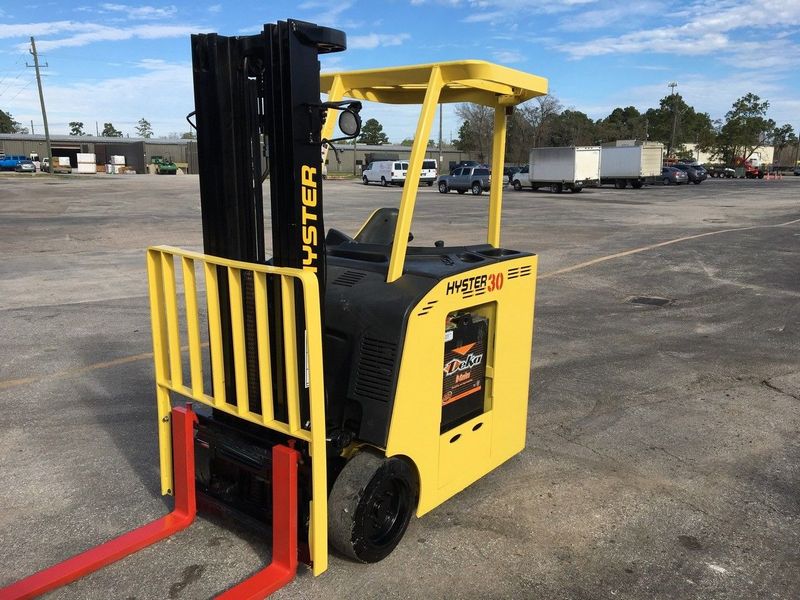

Hyster E30HSD
Contents:
Dimensions
| Length To Fork Face | 5.61 ft in (1709 mm) |
| Overall Width | 3.51 ft in (1067 mm) |
| Overall Height - Mast Lowered | 6.83 ft in (2080 mm) |
| Wheelbase | 3.66 ft in (1114 mm) |
| Ground Clearance | 4.1 in (104 mm) |
| Height To Top Of Overhead Guard | 7.32 ft in (2231 mm) |
| Max Fork Height | 10.61 ft in (3231 mm) |
| Right Angle Stack | 9.69 ft in (2951 mm) |
| Turning Radius | 4.59 ft in (1396 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 90 ft/min (27.44 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 3000.5 lb (1361 kg) |
| Lift Speed | 95 ft/min (28.96 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 8465.8 lb (3840 kg) |
| Tire Type | Front rubber, rear poly 92D |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 7.1 mph (11.3 km/h) |
