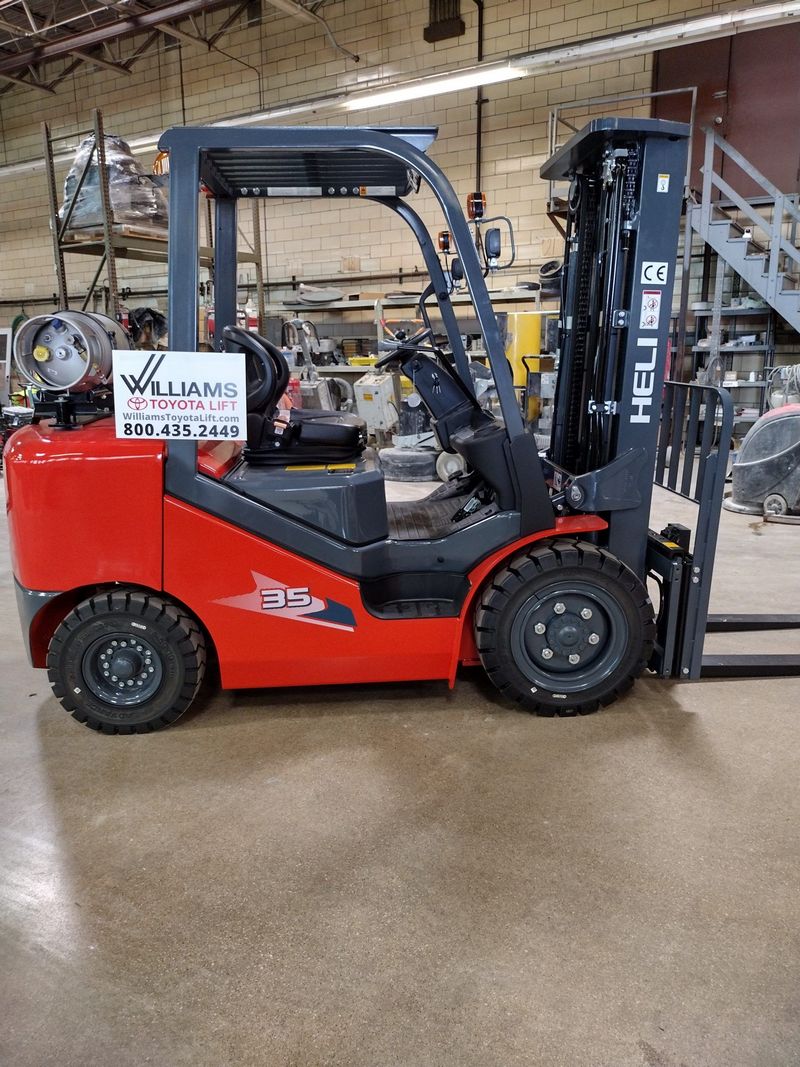

GP CPQY(D)35
Contents:
Dimensions
| Length To Fork Face | 90.72 ft in (27650 mm) |
| Overall Width | 4.04 ft in (1230 mm) |
| Overall Height - Mast Lowered | 7.08 ft in (2155 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.85 ft in (2085 mm) |
| Max Fork Height | 14.3 ft in (4356 mm) |
| Turning Radius | 8.17 ft in (2490 mm) |
Mast
| Lower Speed | 118.12 ft/min (36 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 7716.18 lb (3500 kg) |
| Lift Speed | 72.84 ft/min (22.2 m/min) |
Engine
| Engine Make | 2251 |
| Engine Model | 4G64 |
| Power | 49.7 hp (37 kw) |
| Torque | 118.8 lb ft (161 Nm) |
| Power Measured @ | 2500 rpm |
| Displacement | 143.5 cu in (2.4 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | GASOLINE & LPG |
Operational
| Operating Weight | 10472 lb (4750 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.5 mph (20 km/h) |
