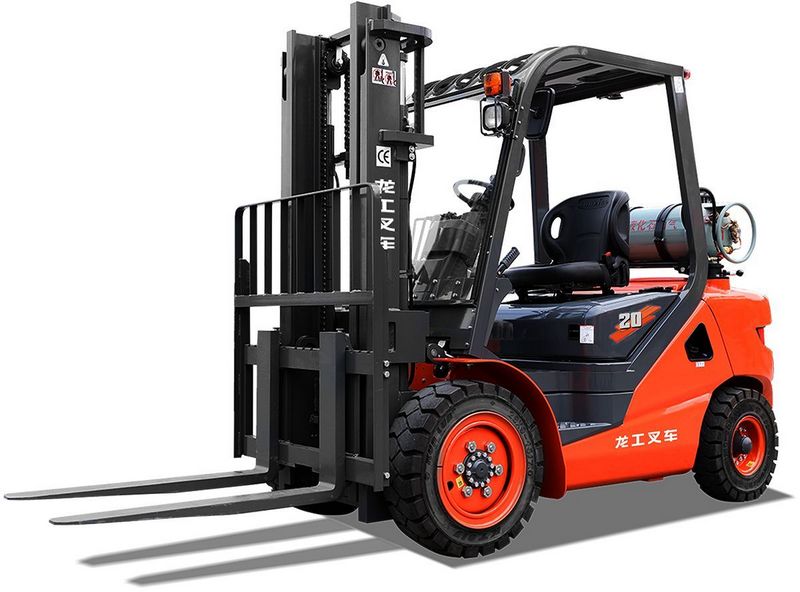

GP CPQY(D)20
Contents:
Dimensions
| Length To Fork Face | 8.26 ft in (2517 mm) |
| Overall Width | 3.81 ft in (1160 mm) |
| Overall Height - Mast Lowered | 6.55 ft in (1995 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.8 ft in (2070 mm) |
| Max Fork Height | 13.91 ft in (4239 mm) |
| Turning Radius | 7.12 ft in (2170 mm) |
Mast
| Lower Speed | 118.12 ft/min (36 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 4409.25 lb (2000 kg) |
| Lift Speed | 104.34 ft/min (31.8 m/min) |
Engine
| Engine Make | 2251 |
| Engine Model | 4G64 |
| Power | 49.7 hp (37 kw) |
| Torque | 118.8 lb ft (161 Nm) |
| Power Measured @ | 2500 rpm |
| Displacement | 143.5 cu in (2.4 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | GASOLINE & LPG |
Operational
| Operating Weight | 7826.5 lb (3550 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.5 mph (20 km/h) |
