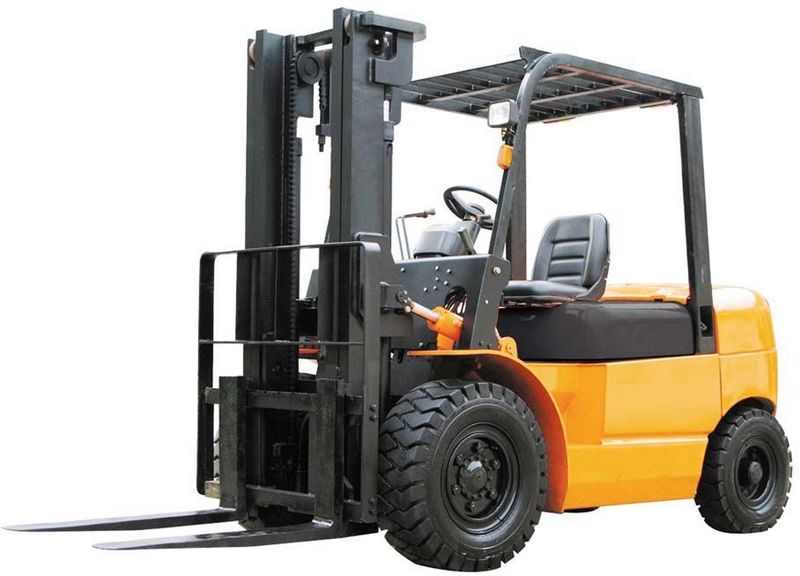

GP CPCD40
Contents:
Dimensions
| Length To Fork Face | 10.04 ft in (3060 mm) |
| Overall Width | 4.86 ft in (1480 mm) |
| Overall Height - Mast Lowered | 7.37 ft in (2245 mm) |
| Ground Clearance | 6.3 in (160 mm) |
| Height To Top Of Overhead Guard | 7.71 ft in (2350 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 9.06 ft in (2760 mm) |
Mast
| Lower Speed | 66.93 ft/min (20.4 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 8818.49 lb (4000 kg) |
| Lift Speed | 84.65 ft/min (25.8 m/min) |
Engine
| Engine Make | 2353 |
| Engine Model | 6BG1 |
| Power | 110.4 hp (82.3 kw) |
| Torque | 306.9 lb ft (416 Nm) |
| Power Measured @ | 2000 rpm |
| Displacement | 396.1 cu in (6.5 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | DIESEL |
Operational
| Operating Weight | 13889.2 lb (6300 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.9 mph (19 km/h) |
