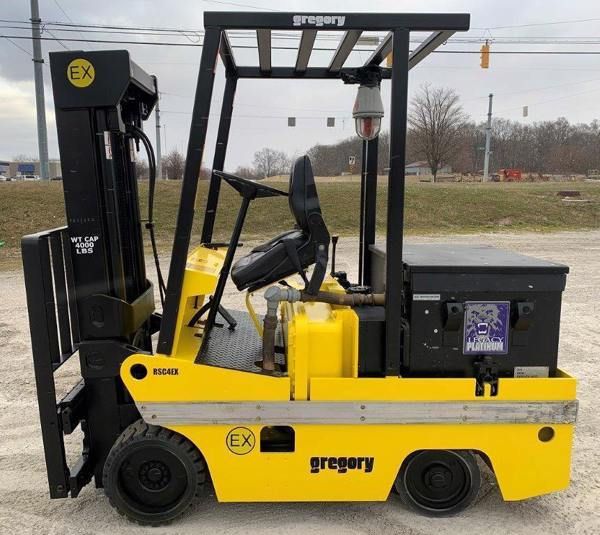

Excalibur Equipment, LLC Gregory RSC4EX
Contents:
Dimensions
| Length To Fork Face | 6.92 ft in (2109.22 mm) |
| Overall Width | 3.83 ft in (1167.39 mm) |
| Overall Height - Mast Lowered | 7.33 ft in (2234.19 mm) |
| Wheelbase | 4.58 ft in (1395.99 mm) |
| Ground Clearance | 4 in (101.6 mm) |
| Height To Top Of Overhead Guard | 6.66 ft in (2029.97 mm) |
| Max Fork Height | 10.83 ft in (3300.99 mm) |
| Right Angle Stack | 7 ft in (2133.6 mm) |
| Turning Radius | 5.58 ft in (1700.79 mm) |
Mast
| Mast Tip Forward | 4 degrees |
| Mast Tip Rear | 8 degrees |
| Max Fork Spread | 39 in (990.6 mm) |
| Lower Speed | 88.8 ft/min (88.8 -) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 4000 lb (1814.37 kg) |
| Lift Speed | 118 ft/min (118 -) |
Engine
| Power | 13 hp (9.7 kw) |
| Fuel Type | electric |
Operational
| Operating Weight | 7172 lb (3253.2 kg) |
| Tire Type | front 200/50-10 rear 16x6/8 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.4 mph (13.6 km/h) |
