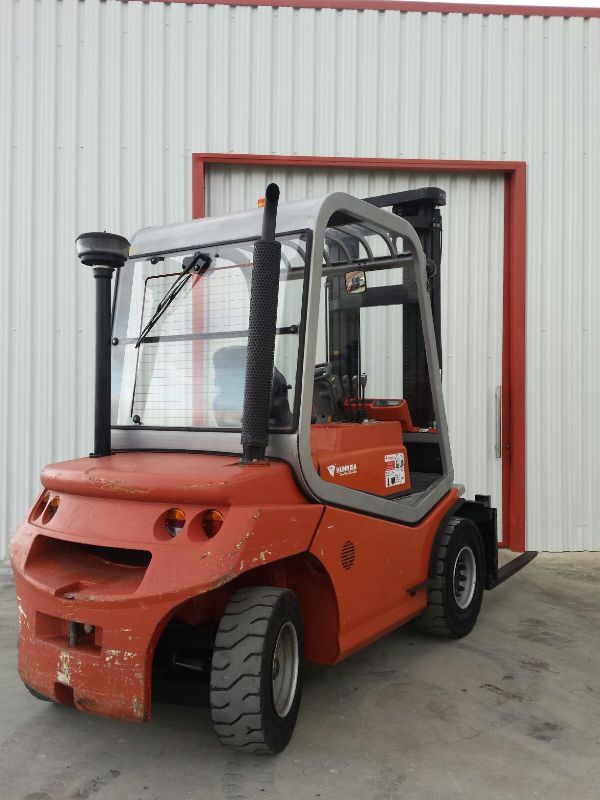

BT C4D500E
Contents:
Dimensions
| Length To Fork Face | 9.91 ft in (3019 mm) |
| Overall Width | 4.87 ft in (1483 mm) |
| Overall Height - Mast Lowered | 8.04 ft in (2450 mm) |
| Wheelbase | 6.24 ft in (1900 mm) |
| Ground Clearance | 5.91 in (150 mm) |
| Height To Top Of Overhead Guard | 8.31 ft in (2530 mm) |
| Max Fork Height | 10.34 ft in (3150 mm) |
| Turning Radius | 9.05 ft in (2757 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 118.12 ft/min (36 m/min) |
| Load Capacity | 10802.66 lb (4900 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 98.43 ft/min (30 m/min) |
Engine
| Engine Make | 2240 |
| Engine Model | e 4045D |
| Power | 75.1 hp (56 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 15432.4 lb (7000 kg) |
| Tire Type | front 300-15 rear 250-15 |
| Number Of Front Wheels | 2-4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (18 km/h) |
