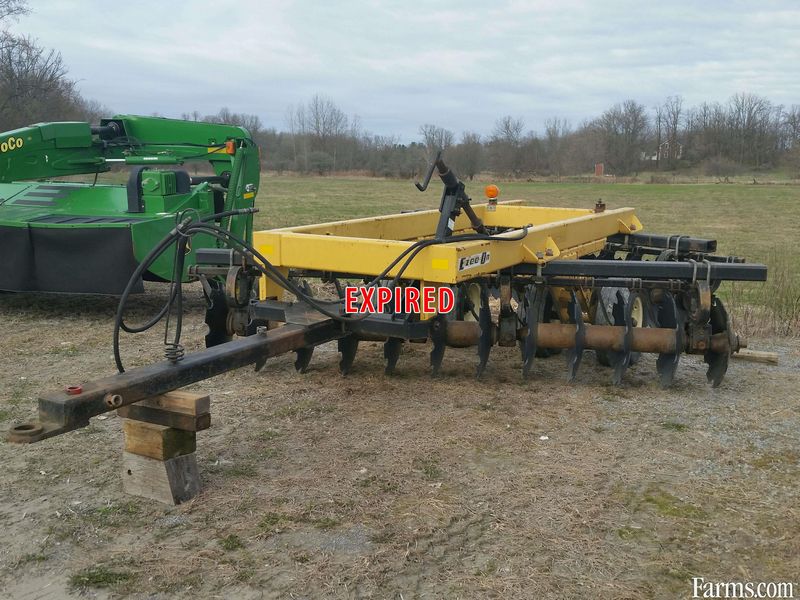

Ezee-On 1275
Contents:
Dimensions
| Transport Width | 22.5 ft in (6858 mm) |
| Max Weight | 11193 lb (5077.06 kg) |
| Min Weight | 5110 lb (2317.86 kg) |
| Pto Power Required Per Width Ft. | 12 hp (8.95 kw) |
| Working Width Spacing #1 Max | 20 ft in (6096 mm) |
| Working Width Spacing #1 Min | 6 ft in (1828.8 mm) |
| Working Width Spacing #2 Max | 20 ft in (6096 mm) |
| Main Frame Tires | 11Lx15FI |
| Working Width Spacing #2 Min | 6 ft in (1828.8 mm) |
Disc System
| Spacing #1 | 10.5 in (266.7 mm) |
| Spacing #2 | 12 in (304.8 mm) |
| Blade Diameter | 26 in (660.4 mm) |
| Blade Thickness | 0.4 in (8 mm) |
| Depth Control | single 4"x12" Hyd. Cyl. |
| Weight Per Blade Spacing #1 | 273 lb (123.9 kg) |
| Weight Per Blade Spacing #2 | 306 lb (138.8 kg) |
Gangs
| Gang Spool Type | steel fabricated |
| Gang Spool Diameter | 6.7 in (168.3 mm) |
| Front Disk Angle | 25 degrees |
| Rear Disk Angle | 25 degrees |
| Bearing Type | T2-215 series |
| Scrapers | 4" high carbon steel |
