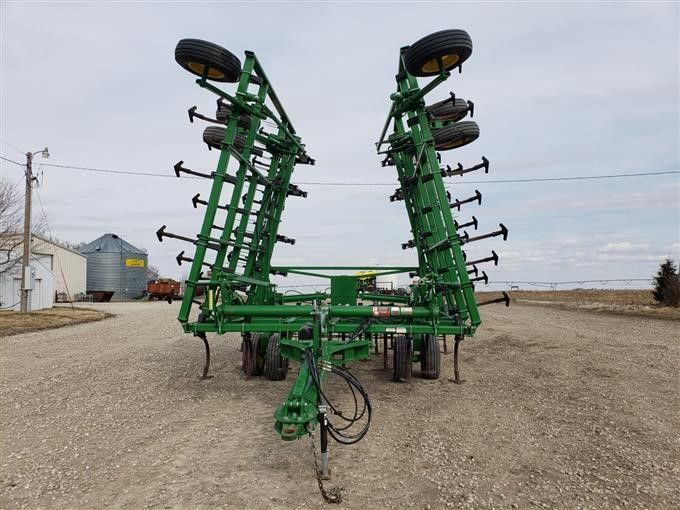

John Deere 2210 Level-Lift 23.6ft
Browse All John Deere or Cultivator Models
Contents:
Dimensions
| Transport Width | 16.43 ft in (5004.82 mm) |
| Transport Height | 10.33 ft in (3148.59 mm) |
| Pto Power Required Per Width Ft. | 4 hp (2.99 kw) |
| Under Frame Clearance | 24 in (609.6 mm) |
Frame
| Min Working Width | 23.5 ft in (7.2 m) |
| Max Working Width | 38.5 ft in (11.8 m) |
| Main Frame Width | 12 ft in (3.7 m) |
| Spacing Option 1 | 4.5 in (114.3 mm) |
| Spacing Option 2 | 6 in (152.4 mm) |
| Spacing Option 3 | 9 in (228.6 mm) |
Operational
| Number Of Sections | 3 |
| Max Speed | 8 mph (12.9 km/h) |
| Max Operating Depth | 5 in (127 mm) |
| Shank Trip Force | 200 lb (90.8 kg) |
Harrow
| Option 1 Type | 4-Bar Coil-Tine Harrow |
| Effective Spike/Tine Spacing | 3.4 in (84.6 mm) |
| Spike/Tine Spacing | 10 in (254 mm) |
| Option 3 Type | 3-Bar Spike with rolling basket |
| Basket Diameter | 11 in (279.4 mm) |
