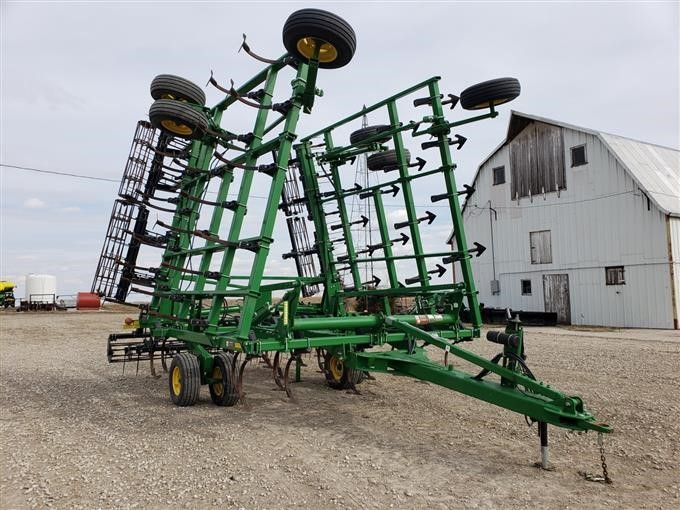

John Deere 2210 Level-lift 20.6ft
Browse All John Deere or Cultivator Models
Contents:
Dimensions
| Transport Width | 14.33 ft in (4367.79 mm) |
| Transport Height | 10.33 ft in (3148.59 mm) |
| Pto Power Required Per Width Ft. | 4 hp (2.99 kw) |
| Under Frame Clearance | 24 in (609.6 mm) |
Frame
| Min Working Width | 20.5 ft in (6.3 m) |
| Max Working Width | 28.5 ft in (8.7 m) |
| Main Frame Width | 10 ft in (3.1 m) |
| Spacing Option 1 | 4.5 in (114.3 mm) |
| Spacing Option 2 | 6 in (152.4 mm) |
| Spacing Option 3 | 9 in (228.6 mm) |
Operational
| Number Of Sections | 3 |
| Max Speed | 8 mph (12.9 km/h) |
| Max Operating Depth | 5 in (127 mm) |
| Shank Trip Force | 150 lb (68.1 kg) |
Harrow
| Option 1 Type | 5-Bar Spike Tooth Harrow |
| Effective Spike/Tine Spacing | 4.5 in (114.3 mm) |
| Option 2 Type | 3-Bar Coil-Tine Harrow |
| Spike/Tine Spacing | 10 in (254 mm) |
| Option 3 Type | 2-Bar Coil Tine Harrow with rolling basket |
| Basket Diameter | 14 in (355.6 mm) |
| Bar Size | 0.875 in. |
