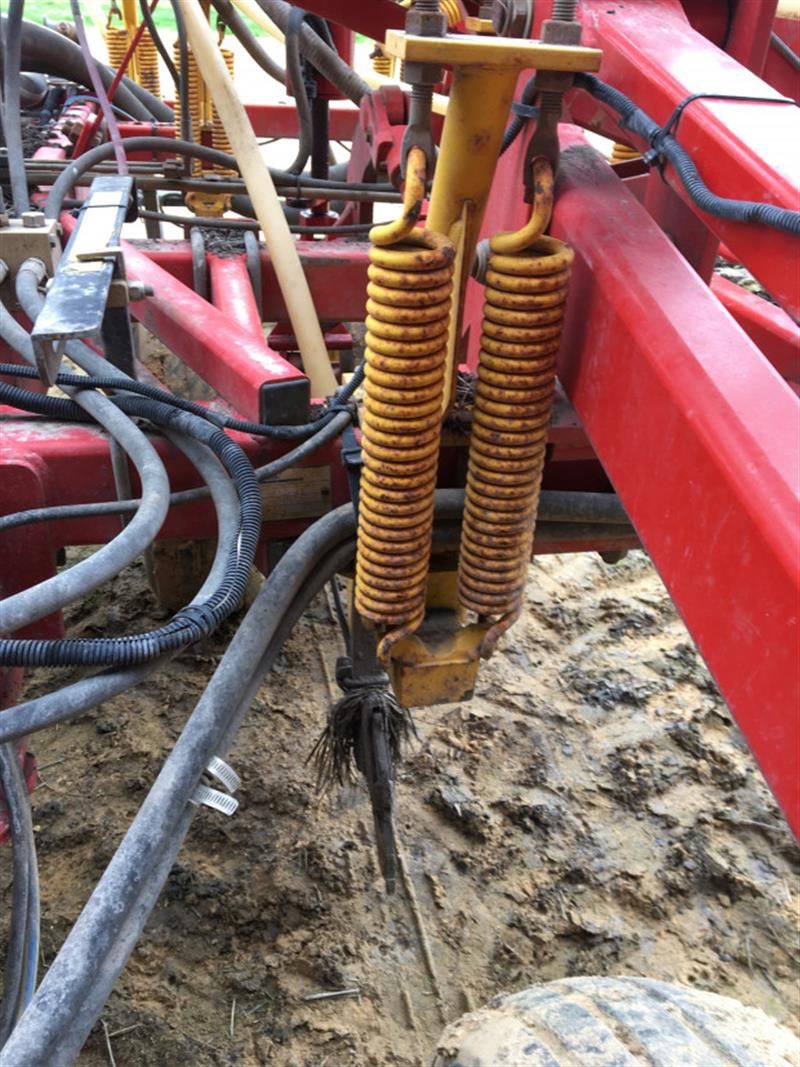

Bourgault 8810-48
Contents:
| Transport Width | 25.08 ft in (7644.39 mm) |
| Transport Height | 14.33 ft in (4367.79 mm) |
| Frame Depth | 104.5 in (2654.3 mm) |
| Main Frame Tires | 12.5x15FI |
| Under Frame Clearance | 27 in (685.8 mm) |
| Wing Tires | 11x15FI |
| Min Working Width | 48 ft in (14.7 m) |
| Max Working Width | 52 ft in (15.9 m) |
| Main Frame Width | 15.5 ft in (4.8 m) |
| Inner Wing Width | 8.7 ft in (2.7 m) |
| Outer Wing Width | 7.9 ft in (2.4 m) |
| Spacing Option 1 | 8 in (203.2 mm) |
| Spacing Option 2 | 10 in (254 mm) |
| Spacing Option 3 | 12 in (304.8 mm) |
| Operational Weight | 17800 lb (8074 kg) |
| Number Of Sections | 5 |
| Number Of Rows | 5 |
| Row/Rank Spacing | 25 in (635 mm) |
