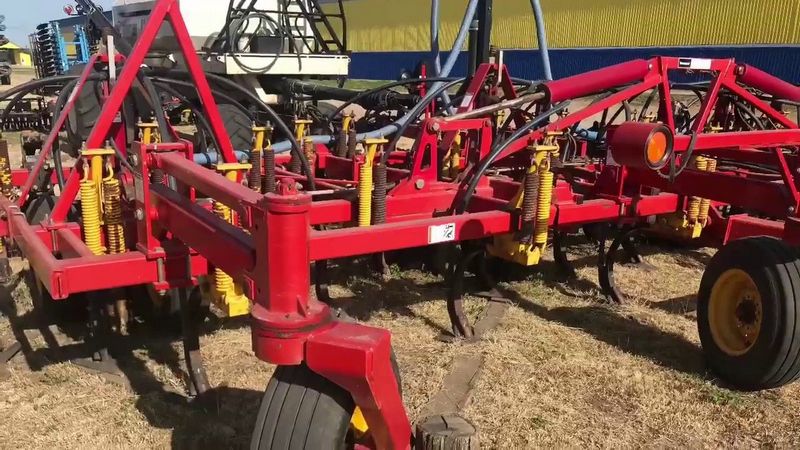

Bourgault 8810-28
Contents:
| Transport Width | 17.68 ft in (5385.82 mm) |
| Transport Height | 13.92 ft in (4242.82 mm) |
| Frame Depth | 104.5 in (2654.3 mm) |
| Main Frame Tires | 11x15FI |
| Under Frame Clearance | 27 in (685.8 mm) |
| Wing Tires | 9.5x15FI |
| Min Working Width | 28 ft in (8.6 m) |
| Max Working Width | 33.4 ft in (10.2 m) |
| Main Frame Width | 12.9 ft in (4 m) |
| Inner Wing Width | 7.8 ft in (2.4 m) |
| Spacing Option 1 | 8 in (203.2 mm) |
| Spacing Option 2 | 10 in (254 mm) |
| Operational Weight | 11400 lb (5171 kg) |
| Number Of Sections | 3 |
| Number Of Rows | 5 |
| Row/Rank Spacing | 25 in (635 mm) |
