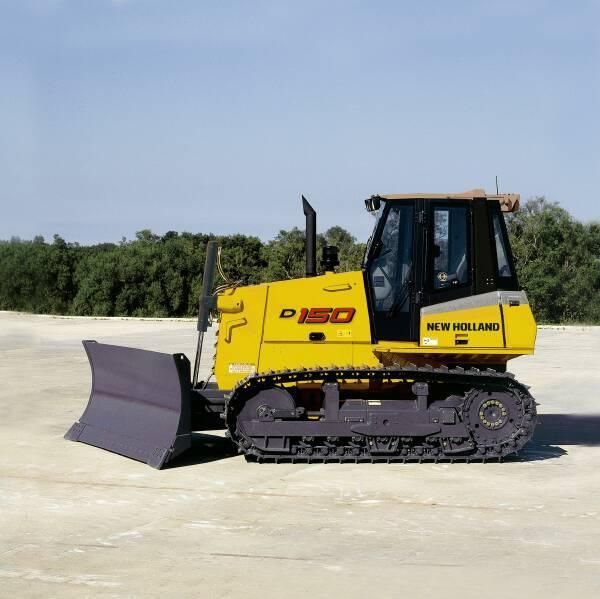

New Holland DC150B LGP
Browse All New Holland or Crawler Tractor Models
Contents:
Dimensions
| Length Of Track On Ground | 9.8 ft in (2985 mm) |
Undercarriage
| Track Gauge | 6.24 ft in (1900 mm) |
| Standard Shoe Size | 31.5 in (800 mm) |
| Ground Contact Area | 7403 in2 (4.78 m2) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 48 |
| Ground Pressure | 5 psi (34.48 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | 6BTAA5.9 |
| Gross Power | 150 hp (111.9 kw) |
| Net Power | 140 hp (104.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 479 lb ft (649.5 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Torque Measured @ | 1300 rpm |
Operational
| Fuel Capacity | 71.4 gal (270 L) |
| Cooling System Fluid Capacity | 7.4 gal (28 L) |
| Final Drives Fluid Capacity | 2.7 gal (10 L) |
| Operating Voltage | 24 V |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.8 mph (11 km/h) |
| Max Speed - Reverse | 8.1 mph (13.1 km/h) |
