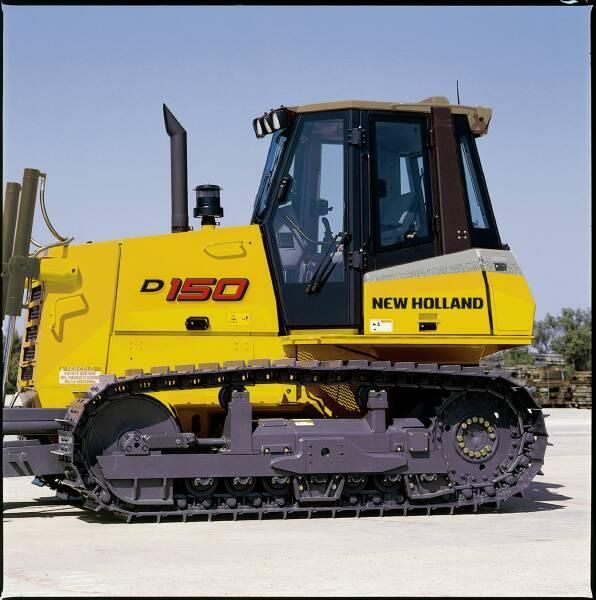

New Holland D150 LGP
Browse All New Holland or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17.44 ft in (5315 mm) |
| Width Over Tracks | 9.65 ft in (2940 mm) |
| Height To Top Of Cab | 10.11 ft in (3080 mm) |
| Length Of Track On Ground | 9.8 ft in (2985 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Length W/O Blade | 13.16 ft in (4010 mm) |
Undercarriage
| Track Gauge | 7.03 ft in (2140 mm) |
| Standard Shoe Size | 31.5 in (800 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 4.98 psi (34.33 kPa) |
| Ground Contact Area | 74028.15 in2 (47.76 m2) |
| Number Of Shoes Per Side | 48 |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6BTAA5.9 |
| Net Power | 140 hp (104.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 479.5 lb ft (650 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbo-aftercooler |
Operational
| Operating Weight | 36618.8 lb (16610 kg) |
| Fuel Capacity | 71.4 gal (270 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Engine Oil Capacity | 3.8 gal (14.2 L) |
| Hydraulic Fluid Capacity | 16.7 gal (63 L) |
| Final Drives Fluid Capacity | 6.9 gal (26 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | Full PowerShift, CounterShaft, Constant Mesh |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.9 mph (11 km/h) |
| Max Speed - Reverse | 8.1 mph (13 km/h) |
Hydraulic System
| Pump Type | Variable Displacement Pump |
| Relief Valve Pressure | 2755.8 psi (19000 kPa) |
Standard Blade
| Width | 13.2 ft in (4000 mm) |
| Height | 39.4 in (1000 mm) |
| Capacity | 4.2 yd3 (3.2 m3) |
| Blade Angle (Both Directions) | 5 degrees |
| Cutting Depth | 23.3 in (590 mm) |
