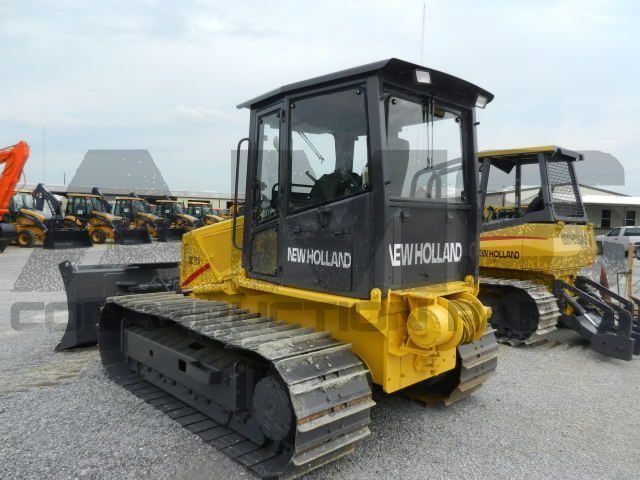

New Holland DC100
Browse All New Holland or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 14.51 ft in (4420 mm) |
| Width Over Tracks | 8.24 ft in (2510 mm) |
| Height To Top Of Cab | 8.93 ft in (2720 mm) |
| Length Of Track On Ground | 8.03 ft in (2445 mm) |
| Ground Clearance | 1.53 ft in (465 mm) |
| Length W/O Blade | 10.96 ft in (3340 mm) |
Undercarriage
| Track Gauge | 5.58 ft in (1700 mm) |
| Standard Shoe Size | 20 in (508 mm) |
| Number Of Shoes Per Side | 41 |
| Ground Pressure | 5.4 psi (37.24 kPa) |
| Ground Contact Area | 3850 in2 (2.49 m2) |
| Number Of Track Rollers Per Side | 7 |
| Track Pitch | 6.74 in (171 mm) |
Engine
| Engine Make | 2301 |
| Engine Model | Cummins 4A 3.9Elite |
| Gross Power | 100 hp (74.6 kw) |
| Max Torque | 327 lb ft (443.4 Nm) |
| Displacement | 238 cu in (3.9 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 20944 lb (9500 kg) |
| Fuel Capacity | 50.2 gal (190 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 2.6 gal (9.8 L) |
| Hydraulic Fluid Capacity | 22.5 gal (85 L) |
| Final Drives Fluid Capacity | 1.2 gal (4.5 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 63 amps |
Transmission
| Transmission Type | dual path hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 6.1 mph (9.7 km/h) |
| Max Speed - Reverse | 6.1 mph (9.7 km/h) |
Hydraulic System
| Pump Type | gear type |
| Relief Valve Pressure | 3046 psi (21001.5 kPa) |
| Pump Flow Capacity | 14.3 gal/min (54 L/min) |
Standard Blade
| Width | 9.2 ft in (2800 mm) |
| Height | 41.4 in (1050 mm) |
| Capacity | 2.9 yd3 (2.2 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 20.5 in (520 mm) |
