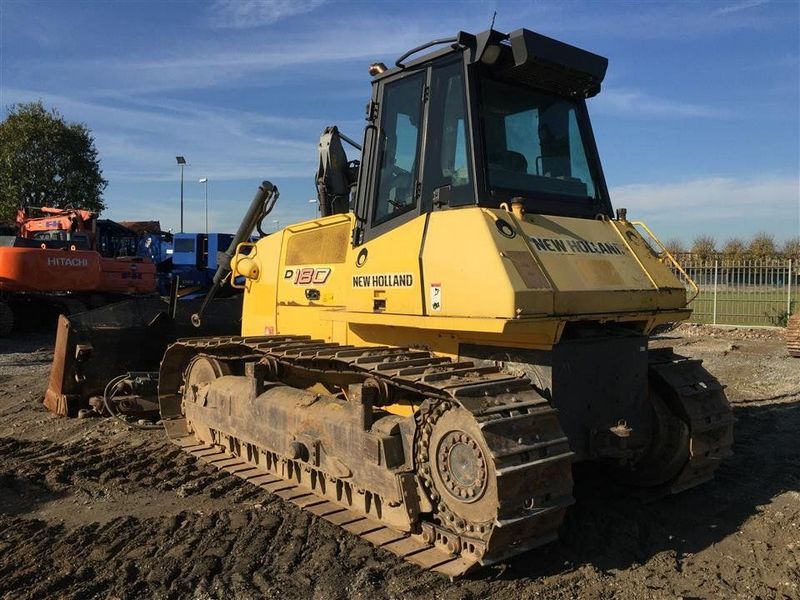

New Holland D180
Browse All New Holland or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 18.01 ft in (5487 mm) |
| Width Over Tracks | 8.08 ft in (2460 mm) |
| Height To Top Of Cab | 10.62 ft in (3235 mm) |
| Length Of Track On Ground | 8.86 ft in (2700 mm) |
| Ground Clearance | 1.28 ft in (390 mm) |
| Length W/O Blade | 13.82 ft in (4210 mm) |
Undercarriage
| Track Gauge | 6.24 ft in (1900 mm) |
| Standard Shoe Size | 22.05 in (560 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 8.94 psi (61.59 kPa) |
| Ground Contact Area | 46872.1 in2 (30.24 m2) |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6CTA8.3 |
| Net Power | 180 hp (134.3 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 506.5 cu in (8.3 L) |
| Aspiration | turbocharged, aftercooled |
Operational
| Operating Weight | 44202.7 lb (20050 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 5.1 gal (19 L) |
| Hydraulic Fluid Capacity | 29.1 gal (110 L) |
| Final Drives Fluid Capacity | 4.8 gal (18 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | Full PowerShift, CounterShaft, Constant Mesh |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.6 mph (10.6 km/h) |
| Max Speed - Reverse | 7.9 mph (12.7 km/h) |
Hydraulic System
| Pump Type | variable displacement piston |
| Relief Valve Pressure | 2755.8 psi (19000 kPa) |
| Pump Flow Capacity | 43.6 gal/min (165 L/min) |
Standard Blade
| Width | 11.3 ft in (3420 mm) |
| Height | 56.2 in (1425 mm) |
| Capacity | 7.4 yd3 (5.6 m3) |
| Blade Angle (Both Directions) | 10 degrees |
| Cutting Depth | 19 in (481 mm) |
