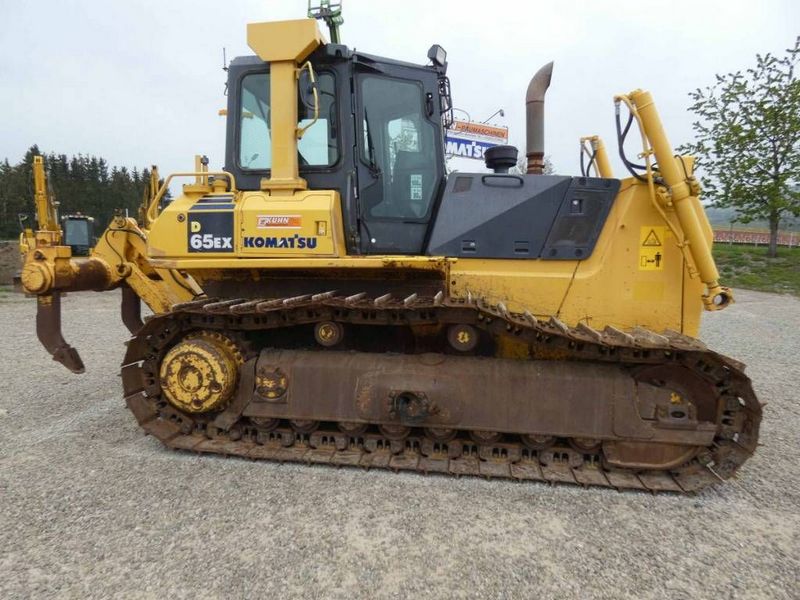

Komatsu D65WX-15E0
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17.85 ft in (5440 mm) |
| Width Over Tracks | 6.73 ft in (2050 mm) |
| Height To Top Of Cab | 10.57 ft in (3220 mm) |
| Ground Clearance | 1.33 ft in (405 mm) |
Undercarriage
| Track Gauge | 6.73 ft in (2050 mm) |
| Standard Shoe Size | 31.89 in (810 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 5.97 psi (41.17 kPa) |
| Number Of Shoes Per Side | 39 |
| Ground Contact Area | 6717 in2 (4.34 m2) |
Engine
| Engine Make | Komatsu |
| Engine Model | SAA6D114E-3 |
| Gross Power | 207 hp (154.4 kw) |
| Net Power | 205 hp (152.9 kw) |
| Power Measured @ | 1950 rpm |
| Displacement | 504.7 cu in (8.3 L) |
Operational
| Operating Weight | 46605.8 lb (21140 kg) |
| Fuel Capacity | 109.7 gal (415 L) |
| Cooling System Fluid Capacity | 9.8 gal (37 L) |
| Engine Oil Capacity | 7.4 gal (28 L) |
| Final Drives Fluid Capacity | 7.2 gal (27 L) |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.3 mph (10.2 km/h) |
| Max Speed - Reverse | 8.1 mph (13.1 km/h) |
