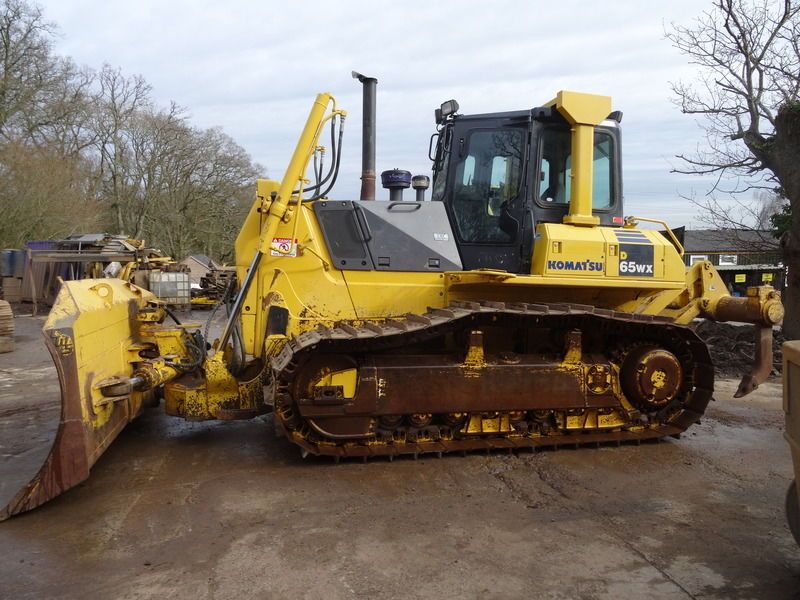

Komatsu D65WX-15 PAT
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 18.34 ft in (5590 mm) |
| Height To Top Of Cab | 10.58 ft in (3220 mm) |
| Length Of Track On Ground | 9.75 ft in (2980 mm) |
| Ground Clearance | 1.33 ft in (405 mm) |
Undercarriage
| Track Gauge | 6.73 ft in (2050 mm) |
| Ground Pressure | 7.05 psi (48.6 kPa) |
| Ground Contact Area | 6097 in2 (3.94 m2) |
| Number Of Shoes Per Side | 42 |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D114E-3 |
| Gross Power | 207 hp (154.4 kw) |
| Displacement | 505 cu in (8.3 L) |
| Aspiration | Turbocharged, air-to-air aftercooled |
Operational
| Operating Weight | 47310 lb (21460 kg) |
| Fuel Capacity | 109.6 gal (415 L) |
| Cooling System Fluid Capacity | 9.8 gal (37 L) |
| Engine Oil Capacity | 7.4 gal (28 L) |
| Final Drives Fluid Capacity | 7.1 gal (27 L) |
Transmission
| Transmission Type | multi-disc clutch transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.3 mph (10.1 km/h) |
| Max Speed - Reverse | 8.1 mph (12.9 km/h) |
Hydraulic System
| Relief Valve Pressure | 2990 psi (20615.4 kPa) |
| Pump Flow Capacity | 55.5 gal/min (210 L/min) |
