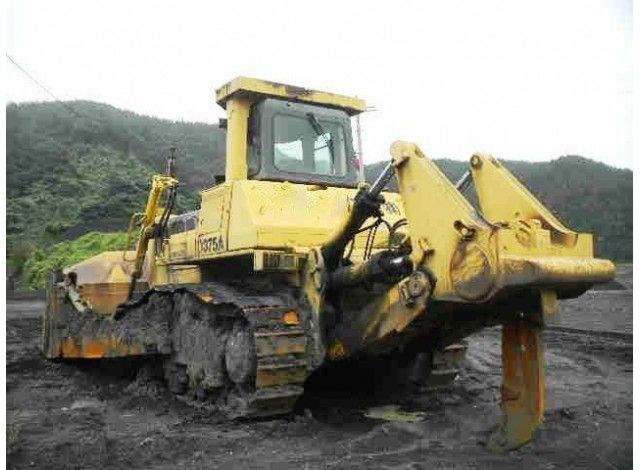

Komatsu D375A-3
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 32.94 ft in (10040 mm) |
| Width Over Tracks | 15.41 ft in (4695 mm) |
| Height To Top Of Cab | 13.88 ft in (4230 mm) |
| Length Of Track On Ground | 12.6 ft in (3840 mm) |
| Ground Clearance | 2.04 ft in (620 mm) |
| Length W/O Blade | 19.1 ft in (5820 mm) |
Undercarriage
| Track Gauge | 8.21 ft in (2500 mm) |
| Standard Shoe Size | 24.02 in (610 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 15.08 psi (103.95 kPa) |
| Ground Contact Area | 7261.77 in2 (4.69 m2) |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D170E-2 |
| Gross Power | 532 hp (396.8 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 1412.7 cu in (23.2 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 150355.3 lb (68200 kg) |
| Fuel Capacity | 277.4 gal (1050 L) |
| Cooling System Fluid Capacity | 36 gal (136 L) |
| Engine Oil Capacity | 13.5 gal (51 L) |
| Powertrain Fluid Capacity | 39.7 gal (150 L) |
| Final Drives Fluid Capacity | 17.2 gal (65 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
Transmission
| Transmission Type | TF |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.4 mph (11.8 km/h) |
| Max Speed - Reverse | 9.9 mph (15.8 km/h) |
Hydraulic System
| Pump Type | gear type |
| Relief Valve Pressure | 2987 psi (20594 kPa) |
| Pump Flow Capacity | 67.4 gal/min (255 L/min) |
Standard Blade
| Width | 15.5 ft in (4695 mm) |
| Height | 89.2 in (2265 mm) |
| Capacity | 24.2 yd3 (18.5 m3) |
| Cutting Depth | 28.2 in (715 mm) |
