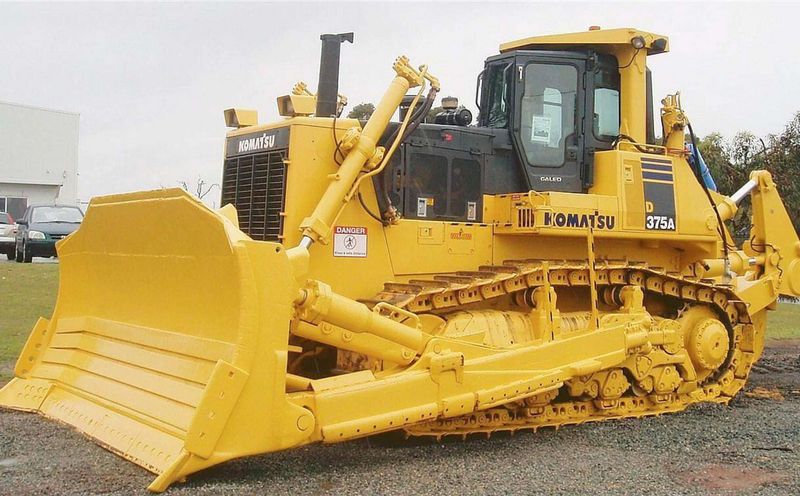

Komatsu D375A-2
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 32.94 ft in (10040 mm) |
| Width Over Tracks | 15.41 ft in (4695 mm) |
| Height To Top Of Cab | 13.88 ft in (4230 mm) |
| Length Of Track On Ground | 12.6 ft in (3840 mm) |
| Ground Clearance | 2.04 ft in (620 mm) |
| Length W/O Blade | 19.1 ft in (5820 mm) |
Undercarriage
| Track Gauge | 8.21 ft in (2500 mm) |
| Standard Shoe Size | 24.02 in (610 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 7 |
| Track Pitch | 11.03 in (280 mm) |
| Number Of Shoes Per Side | 40 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SA6D170E-2 |
| Gross Power | 532 hp (396.8 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 1412.7 cu in (23.2 L) |
Operational
| Operating Weight | 150355.3 lb (68200 kg) |
Transmission
| Transmission Type | TF |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Standard Blade
| Width | 15.5 ft in (4695 mm) |
| Height | 89.2 in (2265 mm) |
