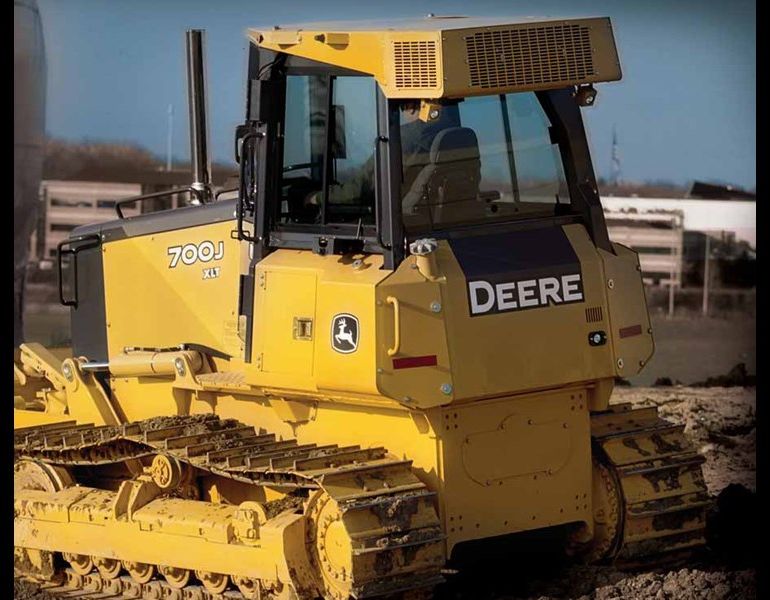

John Deere 700J XLT
Browse All John Deere or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 15.69 ft in (4780 mm) |
| Ground Clearance | 1.25 ft in (381 mm) |
| Height To Top Of Cab | 10.01 ft in (3050 mm) |
Undercarriage
| Track Gauge | 70.08 in (1780 mm) |
| Length Of Track On Ground | 8.5 ft in (2590 mm) |
| Ground Pressure | 5.9 psi (40.68 kPa) |
| Number Of Shoes Per Side | 42 |
| Number Of Track Rollers Per Side | 7 |
| Ground Contact Area | 4514 in2 (2.92 m2) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Net Power | 115 hp (85.8 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 414 cu in (6.8 L) |
Operational
| Operating Weight | 26790.6 lb (12152 kg) |
| Fuel Capacity | 60 gal (227 L) |
| Hydraulic System Fluid Capacity | 13.5 gal (51.1 L) |
| Max Speed | 5.5 mph (8.9 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 25 gal/min (94.7 L/min) |
| Relief Valve Pressure | 3200 psi (22063.3 kPa) |
