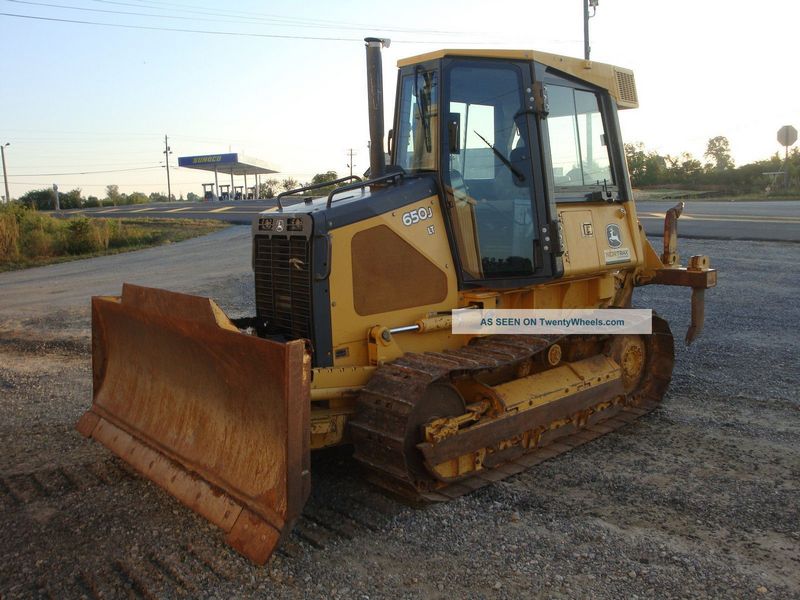

John Deere 650J LT
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 13.42 ft in (4089 mm) |
| Width Over Tracks | 6.59 ft in (2006 mm) |
| Height To Top Of Cab | 9.09 ft in (2768 mm) |
| Length Of Track On Ground | 7.25 ft in (2210 mm) |
| Ground Clearance | 1.19 ft in (363 mm) |
Undercarriage
| Track Gauge | 5.09 ft in (1550 mm) |
| Standard Shoe Size | 18 in (457 mm) |
| Number Of Track Rollers Per Side | 6 |
| Ground Pressure | 5.89 psi (40.6 kPa) |
| Number Of Shoes Per Side | 38 |
| Ground Contact Area | 3132 in2 (2.03 m2) |
| Track Pitch | 6.73 in (171 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045H |
| Net Power | 90 hp (67 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 306 lb ft (416 Nm) |
| Displacement | 276 cu in (4.5 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Altitude compensating turbocharger |
Operational
| Operating Weight | 18598.2 lb (8436 kg) |
| Fuel Capacity | 47 gal (178 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Hydraulic Fluid Capacity | 8.5 gal (32.2 L) |
| Powertrain Fluid Capacity | 11.3 gal (42.7 L) |
| Final Drives Fluid Capacity | 1.8 gal (6.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 5 mph (8.1 km/h) |
| Max Speed - Reverse | 5 mph (8.1 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 15 gal/min (56.8 L/min) |
Standard Blade
| Width | 8.8 ft in (2667 mm) |
| Height | 36.8 in (933 mm) |
| Capacity | 2.7 yd3 (2 m3) |
| Blade Angle (Both Directions) | 22.2 degrees |
| Cutting Depth | 20 in (500 mm) |
