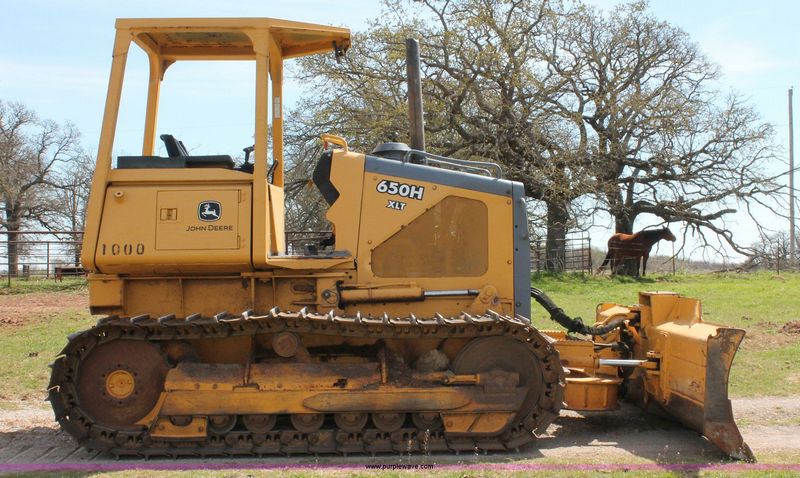

John Deere 650H XLT
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 6.59 ft in (2006 mm) |
| Height To Top Of Cab | 9.09 ft in (2768 mm) |
| Length Of Track On Ground | 7.67 ft in (2337 mm) |
| Ground Clearance | 1.2 ft in (363 mm) |
| Length W/O Blade | 13.96 ft in (4254 mm) |
Undercarriage
| Standard Shoe Size | 18 in (457 mm) |
| Ground Pressure | 5.6 psi (38.5 kPa) |
| Track Pitch | 6.73 in (171 mm) |
| Ground Contact Area | 3312 in2 (2.14 m2) |
| Number Of Track Rollers Per Side | 7 |
| Number Of Shoes Per Side | 40 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Net Power | 90 hp (67.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 316 lb ft (428.5 Nm) |
| Displacement | 276 cu in (4.6 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Altitude-compensating turbocharger |
Operational
| Operating Weight | 18600 lb (8437 kg) |
| Fuel Capacity | 47 gal (178 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Hydraulic Fluid Capacity | 8.5 gal (32.2 L) |
| Powertrain Fluid Capacity | 11.3 gal (42.7 L) |
| Final Drives Fluid Capacity | 1.8 gal (6.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Dual-path, electronic-controlled, hydrostatic drive |
| Max Speed - Forward | 5 mph (8 km/h) |
| Max Speed - Reverse | 5 mph (8 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 3000 psi (20685 kPa) |
| Pump Flow Capacity | 15 gal/min (56.8 L/min) |
Standard Blade
| Width | 8.8 ft in (2667 mm) |
| Height | 36.7 in (933 mm) |
| Capacity | 2.6 yd3 (2 m3) |
| Blade Angle (Both Directions) | 22.2 degrees |
| Cutting Depth | 19.7 in (500 mm) |
