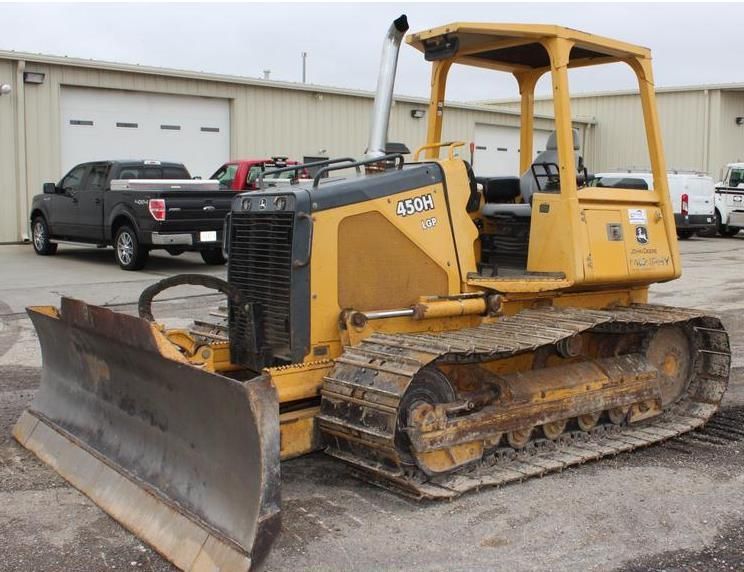

John Deere 450H LPG
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 2.01 ft in (610 mm) |
| Height To Top Of Cab | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 7.17 ft in (2184 mm) |
| Ground Clearance | 1.14 ft in (346 mm) |
| Length W/O Blade | 13.17 ft in (4013 mm) |
Undercarriage
| Standard Shoe Size | 24 in (610 mm) |
| Ground Pressure | 4 psi (27.6 kPa) |
| Track Pitch | 6.29 in (159.81 mm) |
| Ground Contact Area | 4128 in2 (2.67 m2) |
| Number Of Track Rollers Per Side | 6 |
| Number Of Shoes Per Side | 40 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Gross Power | 79 hp (59 kw) |
| Net Power | 74 hp (55.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 254 lb ft (344.4 Nm) |
| Displacement | 276 cu in (4.6 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Altitude-compensating turbocharger |
Operational
| Operating Weight | 16500 lb (7500 kg) |
| Fuel Capacity | 36 gal (136 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Hydraulic Fluid Capacity | 8.5 gal (32.2 L) |
| Powertrain Fluid Capacity | 11.3 gal (42.7 L) |
| Final Drives Fluid Capacity | 1.8 gal (6.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Dual-path, electronic-controlled, hydrostatic drive |
| Max Speed - Forward | 5 mph (8 km/h) |
| Max Speed - Reverse | 5 mph (8 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 3000 psi (20685 kPa) |
| Pump Flow Capacity | 15 gal/min (56.8 L/min) |
Standard Blade
| Width | 8.1 ft in (2464 mm) |
| Height | 32.5 in (826 mm) |
| Capacity | 2 yd3 (1.5 m3) |
| Blade Angle (Both Directions) | 22.2 degrees |
| Cutting Depth | 20.8 in (528 mm) |
