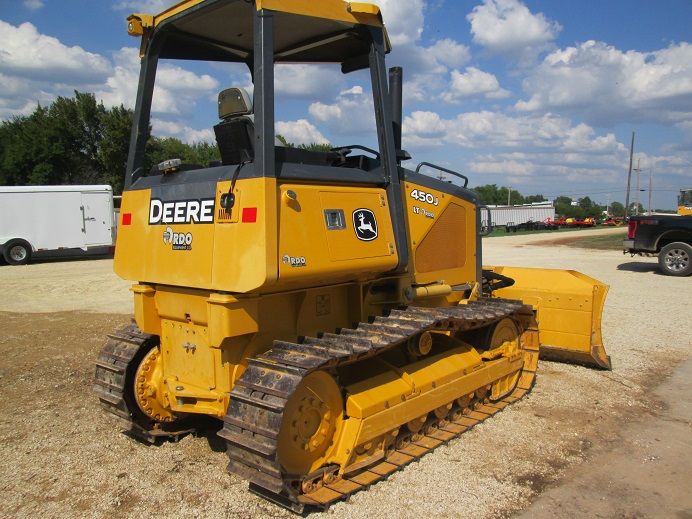

John Deere 450J LT
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 12.92 ft in (3937 mm) |
| Width Over Tracks | 6.08 ft in (1854 mm) |
| Height To Top Of Cab | 9 ft in (2743 mm) |
| Length Of Track On Ground | 7.17 ft in (2184 mm) |
| Ground Clearance | 1.15 ft in (345 mm) |
Undercarriage
| Track Gauge | 4.76 ft in (1450 mm) |
| Standard Shoe Size | 15.99 in (406 mm) |
| Number Of Track Rollers Per Side | 6 |
| Ground Pressure | 5.9 psi (40.68 kPa) |
| Number Of Shoes Per Side | 40 |
| Ground Contact Area | 2752 in2 (1.78 m2) |
| Track Pitch | 6.3 in (159.81 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Net Power | 70 hp (52 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 234 lb ft (318 Nm) |
| Displacement | 276 cu in (4.5 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Altitude-compensating turbocharger |
Operational
| Operating Weight | 16316.5 lb (7401 kg) |
| Fuel Capacity | 47 gal (178 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Hydraulic Fluid Capacity | 8.6 gal (32.2 L) |
| Powertrain Fluid Capacity | 11.3 gal (42.7 L) |
| Final Drives Fluid Capacity | 1.8 gal (6.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 5 mph (8.1 km/h) |
| Max Speed - Reverse | 5 mph (8.1 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 15 gal/min (56.8 L/min) |
Standard Blade
| Width | 8.1 ft in (2464 mm) |
| Height | 32.6 in (826 mm) |
| Capacity | 2 yd3 (1.5 m3) |
| Blade Angle (Both Directions) | 25.4 degrees |
| Cutting Depth | 20.8 in (528 mm) |
