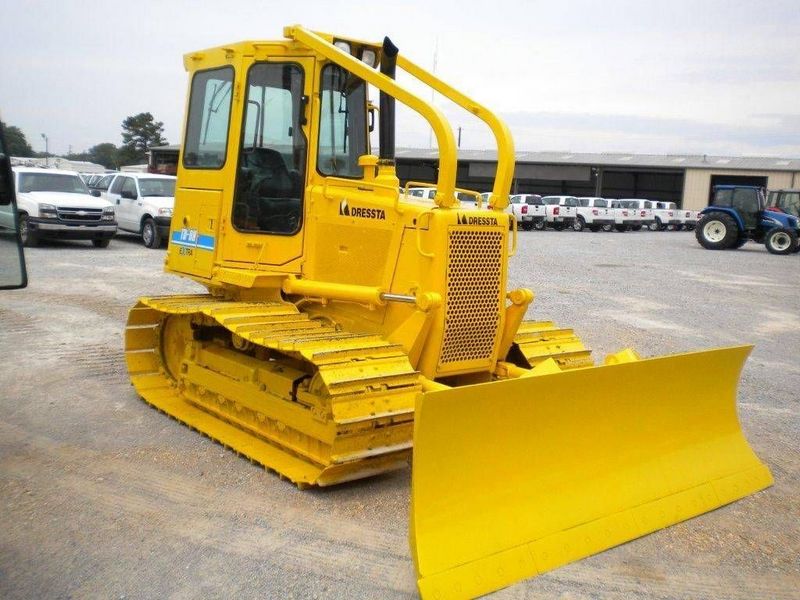

Dressta TD8H
Browse All Dressta or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 14.15 ft in (4310 mm) |
| Width Over Tracks | 7.09 ft in (2160 mm) |
| Height To Top Of Cab | 8.5 ft in (2590 mm) |
| Length W/O Blade | 10.57 ft in (3220 mm) |
Undercarriage
| Standard Shoe Size | 387 in (9829.8 mm) |
| Ground Pressure | 6.8 psi (46.89 kPa) |
| Ground Contact Area | 2463 in2 (1.59 m2) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | KDC |
| Engine Model | 4 10T/240T |
| Gross Power | 80 hp (59.7 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 235.3 lb ft (319 Nm) |
| Displacement | 238 cu in (3.9 L) |
| Torque Measured @ | 1200 rpm |
Operational
| Operating Weight | 16768.4 lb (7606 kg) |
| Fuel Capacity | 38.5 gal (145.7 L) |
| Cooling System Fluid Capacity | 7.1 gal (26.5 L) |
| Engine Oil Capacity | 2.8 gal (10.4 L) |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 5.8 mph (9.4 km/h) |
| Max Speed - Reverse | 6.9 mph (11.2 km/h) |
