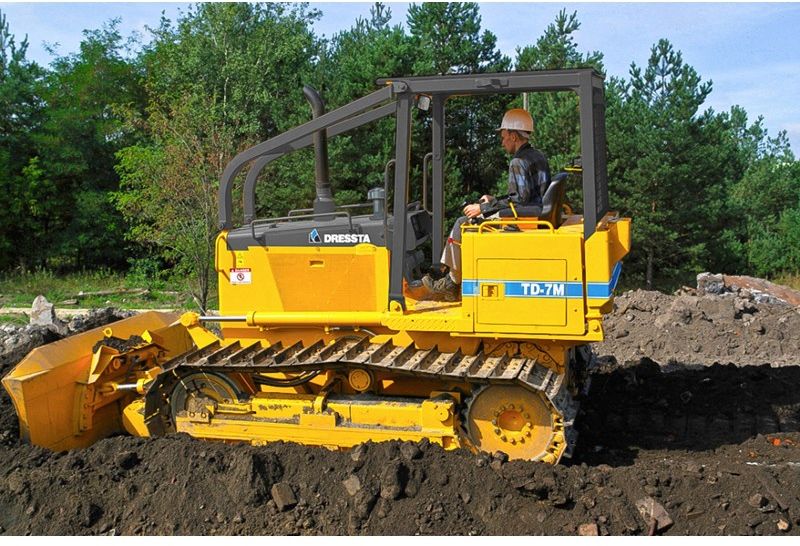

Dressta TD7M
Browse All Dressta or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 13.33 ft in (4060 mm) |
| Height To Top Of Cab | 8.73 ft in (2660 mm) |
| Ground Clearance | 1.06 ft in (323 mm) |
Undercarriage
| Standard Shoe Size | 15 in (381 mm) |
| Ground Contact Area | 2160 in2 (1.4 m2) |
| Number Of Track Rollers Per Side | 5 |
| Track Pitch | 6.5 in (165 mm) |
| Number Of Shoes Per Side | 34 |
| Ground Pressure | 7.45 psi (51 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | B4.5 |
| Gross Power | 80 hp (60 kw) |
| Net Power | 74 hp (55 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 275 cu in (4.5 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | 4-cycle diesel, naturally aspirated, direct start, direct injection |
Operational
| Operating Weight | 16200 lb (7348 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Cooling System Fluid Capacity | 6.6 gal (24.9 L) |
| Hydraulic Fluid Capacity | 18.5 gal (70 L) |
| Powertrain Fluid Capacity | 18.5 gal (70 L) |
| Final Drives Fluid Capacity | 2.5 gal (9.5 L) |
| Operating Voltage | 12 V |
Transmission
| Transmission Type | Modular countershaft type full power shift, electro-hydraulically actuated with 3 speeds forward, 3 reverse |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 5.7 mph (9.2 km/h) |
| Max Speed - Reverse | 6.7 mph (10.8 km/h) |
Hydraulic System
| Pump Type | Pump, tandem gear |
| Relief Valve Pressure | 2250 psi (15512 kPa) |
| Pump Flow Capacity | 19.9 gal/min (75.2 L/min) |
Standard Blade
| Width | 8.6 ft in (2615.2 mm) |
| Height | 2.8 in (69.9 mm) |
| Capacity | 1.9 yd3 (1.4 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 11 in (279 mm) |
