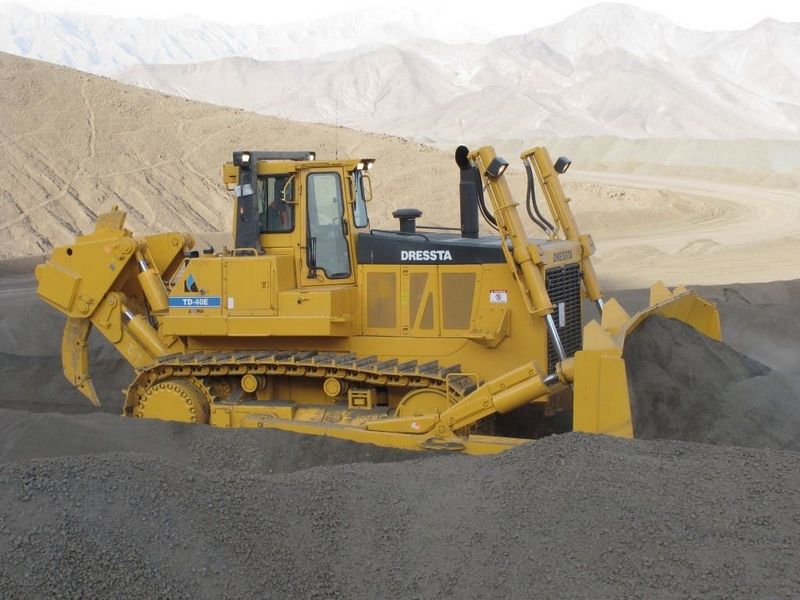

Dressta TD40E
Browse All Dressta or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 12.25 ft in (3730 mm) |
| Height To Top Of Cab | 13.83 ft in (4220 mm) |
| Ground Clearance | 3.12 ft in (950 mm) |
| Length W/O Blade | 18.83 ft in (5750 mm) |
Undercarriage
| Standard Shoe Size | 24 in (610 mm) |
| Ground Pressure | 18.8 psi (129.4 kPa) |
| Number Of Shoes Per Side | 39 |
| Number Of Track Rollers Per Side | 7 |
| Ground Contact Area | 6816 in2 (4.41 m2) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSK19-C |
| Gross Power | 545 hp (406 kw) |
| Net Power | 520 hp (388 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 1150 cu in (19 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | 4-cycle diesel, turbocharged, CAC, direct start, direct injection |
Operational
| Operating Weight | 146915 lb (66640 kg) |
| Fuel Capacity | 360 gal (1362 L) |
| Cooling System Fluid Capacity | 19.6 gal (74 L) |
| Engine Oil Capacity | 19.6 gal (74 L) |
| Hydraulic Fluid Capacity | 71 gal (270 L) |
| Powertrain Fluid Capacity | 71 gal (270 L) |
| Final Drives Fluid Capacity | 22.5 gal (85 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Transmission
| Transmission Type | Modular, countershaft type, powershift transmission. |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.7 mph (12.4 km/h) |
| Max Speed - Reverse | 9.6 mph (15.4 km/h) |
Hydraulic System
| Pump Type | Hydraulic pupms, driven from torque converter |
| Relief Valve Pressure | 2400 psi (16547.5 kPa) |
| Pump Flow Capacity | 104 gal/min (395 L/min) |
Standard Blade
| Width | 15.8 ft in (4810 mm) |
| Height | 7.4 in (2230 mm) |
| Capacity | 24.3 yd3 (18.6 m3) |
| Cutting Depth | 39 in (1000 mm) |
