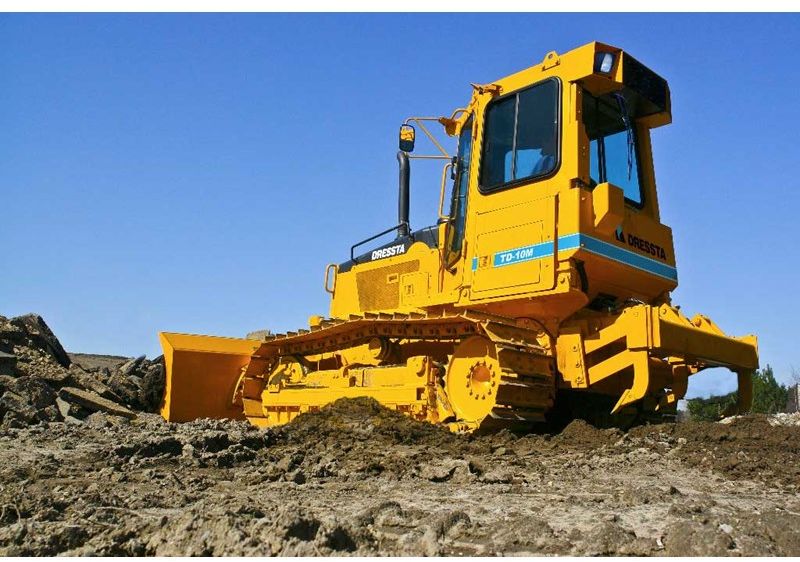

Dressta TD10M LGP
Browse All Dressta or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 8.42 ft in (2570 mm) |
| Height To Top Of Cab | 8.93 ft in (2720 mm) |
| Ground Clearance | 1.25 ft in (381 mm) |
| Length W/O Blade | 15.75 ft in (4800 mm) |
Undercarriage
| Standard Shoe Size | 24 in (610 mm) |
| Ground Pressure | 4.7 psi (32.4 kPa) |
| Track Pitch | 6.5 in (165 mm) |
| Ground Contact Area | 4128 in2 (2.66 m2) |
| Number Of Track Rollers Per Side | 6 |
| Number Of Shoes Per Side | 39 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | QSB4.5 |
| Gross Power | 110 hp (82 kw) |
| Net Power | 101 hp (76 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 275 cu in (4.5 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | 4-cycle diesel turbocharged, ECM, direct start, direct injection |
Operational
| Operating Weight | 19645 lb (8910 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Cooling System Fluid Capacity | 6.6 gal (24.9 L) |
| Engine Oil Capacity | 2.7 gal (10.4 L) |
| Hydraulic Fluid Capacity | 18.5 gal (70 L) |
| Powertrain Fluid Capacity | 18.5 gal (70 L) |
| Final Drives Fluid Capacity | 4 gal (15.1 L) |
| Operating Voltage | 12 V |
Transmission
| Transmission Type | Modualr countershaft type full power shift, electro-hydraulically actuated |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.2 mph (10 km/h) |
| Max Speed - Reverse | 7.4 mph (11.9 km/h) |
Hydraulic System
| Pump Type | Pump, tandem gear |
| Relief Valve Pressure | 2250 psi (15512 kPa) |
| Pump Flow Capacity | 19.9 gal/min (75.2 L/min) |
Standard Blade
| Width | 9.3 ft in (2820 mm) |
| Height | 3.3 in (990 mm) |
| Capacity | 2.7 yd3 (2.1 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 12 in (305 mm) |
