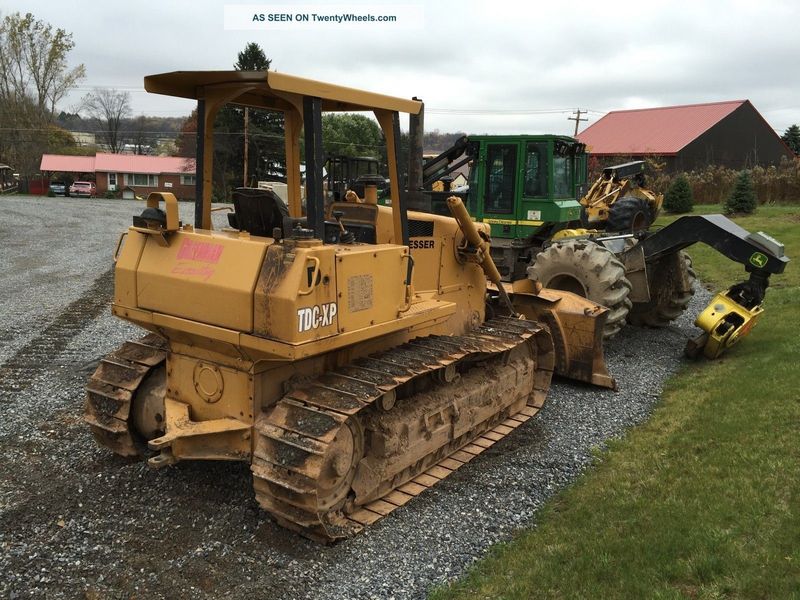

Dresser TD12C-XP
Browse All Dresser or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 7.98 ft in (2430 mm) |
| Height To Top Of Cab | 10.77 ft in (3280 mm) |
Undercarriage
| Standard Shoe Size | 22.01 in (559 mm) |
| Ground Contact Area | 4840 in2 (3.13 m2) |
| Ground Pressure | 6.8 psi (46.89 kPa) |
| Number Of Shoes Per Side | 42 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | KOMATSU |
| Engine Model | S6D102E-1 |
| Gross Power | 152 hp (113.4 kw) |
| Net Power | 142 hp (105.9 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 405.7 lb ft (550 Nm) |
| Displacement | 358.9 cu in (5.9 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Fuel Capacity | 65 gal (246 L) |
| Cooling System Fluid Capacity | 11.5 gal (43.5 L) |
| Final Drives Fluid Capacity | 8 gal (30 L) |
| Operating Voltage | 24 V |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.5 mph (10.5 km/h) |
| Max Speed - Reverse | 7.7 mph (12.4 km/h) |
