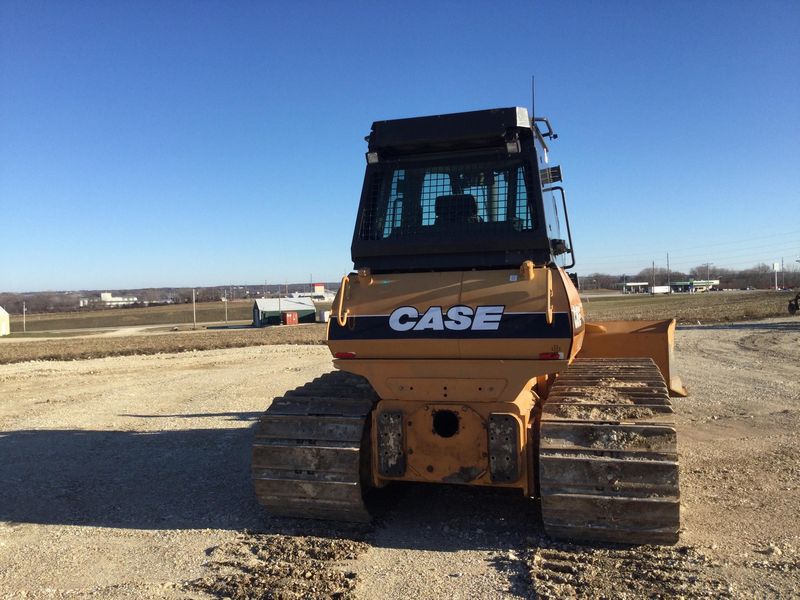

Case 1650L LGP
Browse All Case or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 18.57 ft in (5660 mm) |
| Width Over Tracks | 9.83 ft in (2990 mm) |
| Height To Top Of Cab | 9.83 ft in (2990 mm) |
| Length Of Track On Ground | 10 ft in (3040 mm) |
| Ground Clearance | 1.14 ft in (347 mm) |
Undercarriage
| Track Gauge | 6.99 ft in (2130 mm) |
| Standard Shoe Size | 34 in (864 mm) |
| Track Pitch | 7.5 in (190 mm) |
| Number Of Shoes Per Side | 45 |
| Ground Pressure | 4.63 psi (31.93 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Contact Area | 8168 in2 (52695 m2) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2239 |
| Engine Model | Family IV 667TA/EDJ |
| Gross Power | 156 hp (116 kw) |
| Net Power | 144 hp (107 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 493 lb ft (668.5 Nm) |
| Displacement | 409 cu in (6.7 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 37578 lb (17042 kg) |
| Fuel Capacity | 65 gal (246 L) |
| Cooling System Fluid Capacity | 8.6 gal (32.5 L) |
| Engine Oil Capacity | 4.4 gal (16.4 L) |
| Hydraulic Fluid Capacity | 26 gal (98.4 L) |
| Final Drives Fluid Capacity | 3.8 gal (14.2 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 6 mph (9.7 km/h) |
| Max Speed - Reverse | 6 mph (9.7 km/h) |
Hydraulic System
| Relief Valve Pressure | 2830 psi (19512.2 kPa) |
| Pump Flow Capacity | 34.9 gal/min (132 L/min) |
Standard Blade
| Width | 13.1 ft in (3980 mm) |
| Height | 39.4 in (1000 mm) |
| Capacity | 4.2 yd3 (3.2 m3) |
| Blade Angle (Both Directions) | 28 degrees |
| Cutting Depth | 23.2 in (589 mm) |
