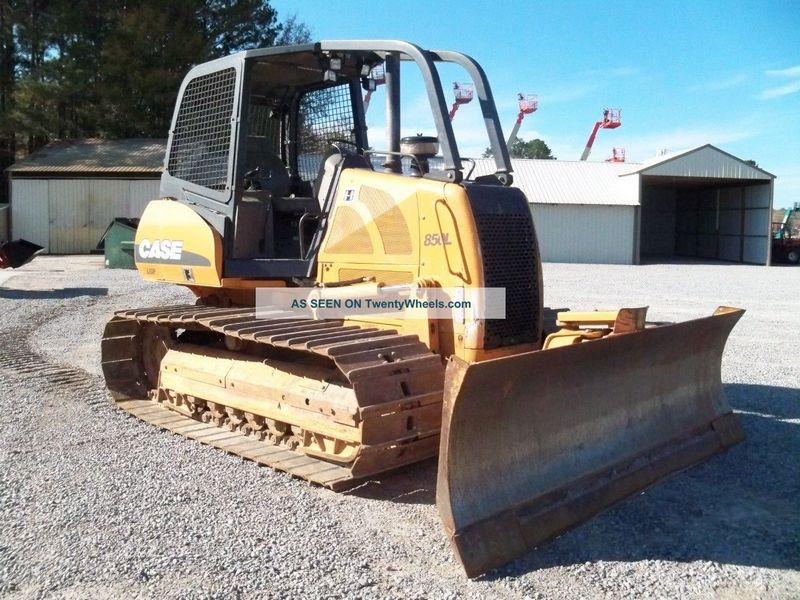

Case 850L WT
Browse All Case or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 14.47 ft in (4408 mm) |
| Width Over Tracks | 7.84 ft in (2388 mm) |
| Height To Top Of Cab | 9.1 ft in (2773 mm) |
| Length Of Track On Ground | 7.71 ft in (2350 mm) |
| Ground Clearance | 1.25 ft in (379 mm) |
Undercarriage
| Track Gauge | 5.16 ft in (1570 mm) |
| Standard Shoe Size | 24.02 in (610 mm) |
| Track Pitch | 6.74 in (171 mm) |
| Number Of Shoes Per Side | 40 |
| Ground Pressure | 4.54 psi (31.3 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Contact Area | 4448.51 in2 (2.87 m2) |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2239 |
| Engine Model | Family IV 667TA/E66 Tier III |
| Gross Power | 99.3 hp (74 kw) |
| Net Power | 96.6 hp (72 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 321 lb ft (435.3 Nm) |
| Displacement | 408.9 cu in (6.7 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 20201 lb (9163 kg) |
| Fuel Capacity | 50.1 gal (189.3 L) |
| Cooling System Fluid Capacity | 7.1 gal (26.5 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Hydraulic Fluid Capacity | 20 gal (75.7 L) |
| Final Drives Fluid Capacity | 3.8 gal (14.2 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 6.1 mph (9.7 km/h) |
| Max Speed - Reverse | 6.1 mph (9.7 km/h) |
Hydraulic System
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 20.3 gal/min (76.8 L/min) |
Standard Blade
| Width | 9.2 ft in (2794 mm) |
| Height | 36 in (914 mm) |
| Capacity | 2.4 yd3 (1.8 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 19.1 in (483 mm) |
