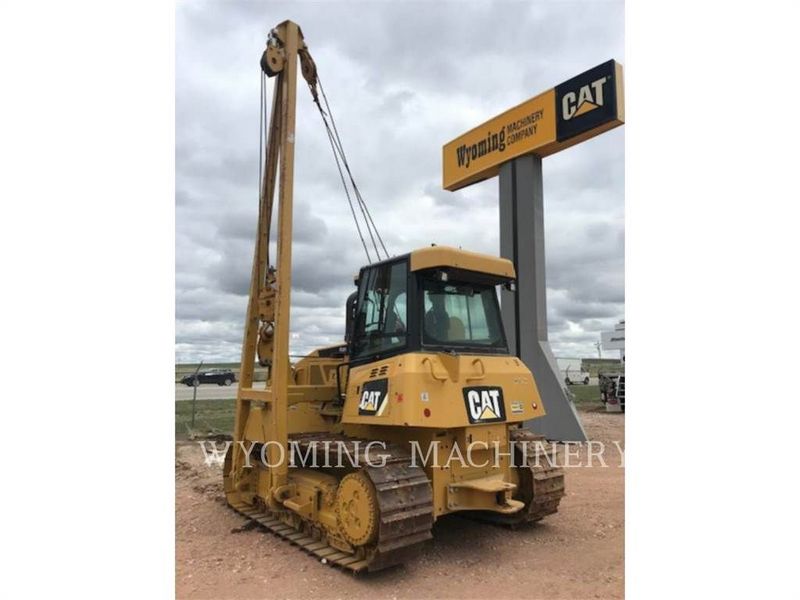

| Track Gauge | 6.59 ft in (2006.6 mm) |
| Machine Height - Tip Of Winch | 101 in (2565.4 mm) |
| Boom Height (At Sae 1.22 M [4 Ft] Overhang) | 245 in (6223 mm) |
| Width - Tractor - With 760 Mm [30 In] Shoes | 109 in (2768.6 mm) |
| Height Of Machine From Tip Of Grouser To Top Of Stack(1) | 112 in (2844.8 mm) |
| Length - Track On Ground | 104 in (2641.6 mm) |
| Operating Length | 12.59 ft in (3835.4 mm) |
| Note | (1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology. |
| Height - Top Of Rops: Canopy/Cab | 118 in (2997.2 mm) |
| Width - Counterweight Extended | 187 in (4749.8 mm) |
| Width - Tractor - Counterweight Retracted | 128 in (3251.2 mm) |
| Width - Tractor - Counterweight/Boom Removed | 126 in (3200.4 mm) |
| Width - Tractor - With 560 Mm [22 In] Shoes | 101 in (2565.4 mm) |
| Track Gauge | 6.59 ft in (2006.6 mm) |
| Track Rollers - Each Side | 7 |
| Track Shoe Width - Lgp | 30 in (762 mm) |
| Track Shoe Width - Narrow | 22 in (558.8 mm) |
| Track Shoe Width - Narrow/Lgp | 560/760 mm (22/30 in) |
| Number Of Shoes/Rollers - Each Side | 40/8 |
| Ground Contact Area | 4650 in2 (3 m2) |
| Ground Contact Area - Lgp | 6200 in2 (4 m2) |
| Ground Contact Area - Narrow | 4650 in2 (3 m2) |
| Ground Pressure - Lgp | 6.3 psi |
| Ground Pressure - Narrow | 8.2 psi |
| Ground Pressure(1) - Lgp | 5.9 psi |
| Ground Pressure(1) - Narrow | 7.8 psi |
| Number Of Shoes - Each Side | 40 |
| Number Of Shoes Per Side | 40 |
| Note | (1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology. |
| Number Of Track Rollers Per Side | 7 |
| Shoe Size | 22 in (558.8 mm) |
| Track Gauge - Lgp | 79 in (2006.6 mm) |
| Track Gauge - Narrow | 70 in (1778 mm) |
| Track On Ground | 104 in (2641.6 mm) |
| Engine Make | 2236 |
| Engine Model | C6.6 ACERT |
| Net Power | 125 hp (93.3 kw) |
| Displacement | 403 cu in (6.7 L) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5 in (127 mm) |
| Net Power - Iso 9249 | 125 hp (93.3 kw) |
| Net Power - Sae J1349 | 123.4 hp (92.1 kw) |
| Engine Model | Cat C6.6 ACERT |
| Flywheel Power | 125 hp (93.3 kw) |
| Note (1) | All nonroad Tier 4 Final, Stage IV and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations. |
| Note (2) | Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
| Note (3) | (1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology. |
| Net Power - Eec 80/1269 | 125 hp (93.3 kw) |
| Net Power - Caterpillar | 125 hp (93.3 kw) |
| Engine Power - 2,000 Rpm - Iso 14396 (Din) | 159 hp (118.6 kw) |
| Cat C4.4 Acert Emissions | U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final |
| Cat C7.1 Acert Emissions | China Nonroad Stage III, equivalent to Tier 3/Stage IIIA |
| Engine Power - 2,000 Rpm: Sae J1995 | 160 hp (119.4 kw) |
| Net Power - 2,200 Rpm - Iso 9249 (Din) | 132 hp (98.5 kw) |
| Fuel Tank | 69 gal (261.2 L) |
| Def Tank(1) | 5 gal (19 L) |
| Net Power - 2,200 Rpm - Iso 9249 | 130 hp (97 kw) |
| Engine Power - 2,000 Rpm - Iso 14396 | 157 hp (117.1 kw) |
| Net Power - 2,200 Rpm - Sae J1349 | 128 hp (95.5 kw) |
| Lift Capacity | 40000 lb (18143.7 kg) |
| Hook Winch Capacity - 16 Mm (5/8 In) Diameter | 239 ft in (72.9 m) |
| Boom Winch Capacity - 16 Mm (5/8 In) Diameter | 162 ft in (49.4 m) |
| Hook With Wire Rope Installed - 16 Mm (5/8 In) Diameter | 130 ft in (39.7 m) |
| Boom With Wire Rope Installed - 16 Mm (5/8 In) Diameter | 130 ft in (39.7 m) |
| Hook Winch Drum Diameter | 8.5 in (215.9 mm) |
| Boom Winch Drum Diameter | 9.7 in (244.7 mm) |
| Hook Winch Flange Diameter | 15.5 in (393.7 mm) |
| Boom Winch Flange Diameter | 14.7 in (371.7 mm) |
| Hook Winch Drum Length | 10 in (254 mm) |
| Boom Winch Drum Length | 10 in (254 mm) |
| Boom Line Speed | 151 ft/min |
| Bare Drum Hook Speed (Hi) | 228 ft/min |
| Bare Drum Hook Speed (Lo) | 108 ft/min |
| 2 Part Line Hook Speed (Lo) | 54 ft/min |
| 2 Part Line Hook Speed (Hi) | 114 ft/min |
| 3 Part Line Hook Speed (Lo) | 36 ft/min |
| 3 Part Line Hook Speed (Hi) | 76 ft/min |
| Counterweight Extendible | 6570 lb (2980.2 kg) |
