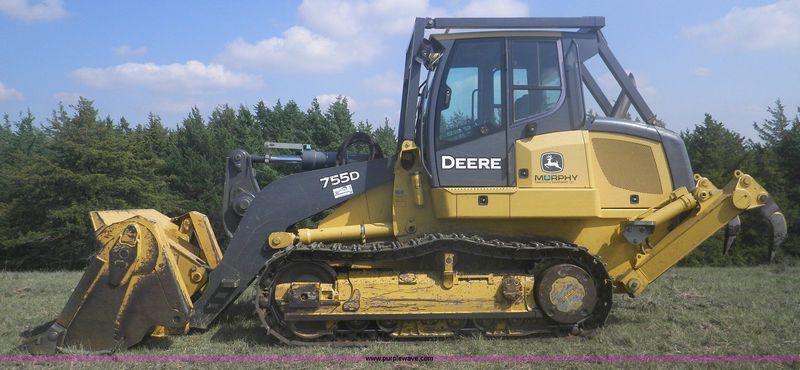

John Deere 755D
Browse All John Deere or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 22.5 ft in (6850 mm) |
| Ground Clearance | 1.5 ft in (458 mm) |
| Width To Outside Of Tracks | 7.58 ft in (2310 mm) |
| Height To Top Of Cab | 10.83 ft in (3130 mm) |
| Clearance At Full Height And Dump | 9.75 ft in (2980 mm) |
| Reach At Dump Height | 4 ft in (1210 mm) |
| Length To Front Of Track | 16 ft in (4870 mm) |
Undercarriage
| Track Gauge | 71 in (1803 mm) |
| Length Of Track On Ground | 8.42 ft in (2565 mm) |
| Number Of Shoes Per Side | 38 |
| Ground Contact Area | 4050 in2 (2.62 m2) |
| Ground Pressure | 11.3 psi (78 kPa) |
| Number Of Track Rollers Per Side | 6 |
| Track Shoe Width | 20 in (508 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Net Power | 181 hp (135 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 688 lb ft (932.9 Nm) |
| Aspiration | Turbocharged w/ aftercooler |
| Torque Measured @ | 1400 rpm |
| Displacement | 415 cu in (6.8 L) |
Operational
| Operating Weight | 46255 lb (20981 kg) |
| Fuel Capacity | 95.1 gal (360 L) |
| Cooling System Fluid Capacity | 5.4 gal (20.5 L) |
| Engine Oil Capacity | 7.3 gal (27.5 L) |
| Final Drive Fluid Capacity - Each | 4.5 gal (17 L) |
| Hydraulic System Fluid Capacity | 50.7 gal (192 L) |
| Static Tipping Load | 31597 lb (14332 kg) |
| Breakout Force - Std Bucket | 36869 lb (164 kN) |
| Bucket Capacity - Heaped | 3.2 yd3 (2.4 m3) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Max Speed | 6.2 mph (10 km/h) |
Hydraulic
| Pump Type | Variable displacement piston pump with load sensing proportional pump flow control |
| Pump Flow Capacity | 55 gal/min (209 L/min) |
| Relief Valve Pressure | 3770 psi (25980 kPa) |
