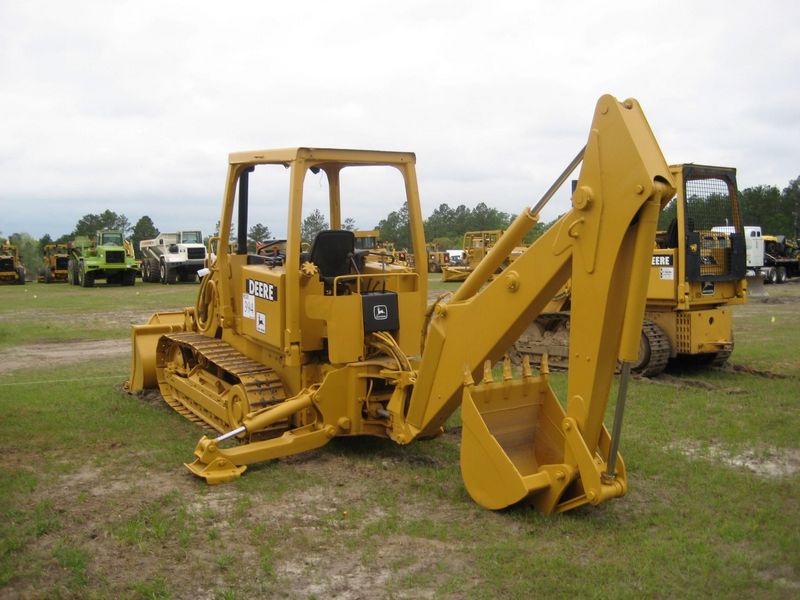

John Deere 455G
Browse All John Deere or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 14.98 ft in (4564 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Width To Outside Of Tracks | 5.92 ft in (1803 mm) |
| Height To Top Of Cab | 9.09 ft in (2769 mm) |
| Clearance At Full Height And Dump | 8.6 ft in (2620 mm) |
| Reach At Dump Height | 2.86 ft in (871 mm) |
Undercarriage
| Track Gauge | 57.09 in (1450 mm) |
| Length Of Track On Ground | 6.34 ft in (1930 mm) |
| Number Of Track Rollers Per Side | 5 |
| Ground Contact Area | 2128 in2 (1.38 m2) |
| Number Of Shoes Per Side | 37 |
| Ground Pressure | 8.81 psi (60.75 kPa) |
| Track Shoe Width | 14.02 in (356 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Net Power | 70 hp (52.2 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 228 lb ft (309.2 Nm) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1300 rpm |
| Displacement | 276 cu in (4.6 L) |
Operational
| Operating Weight | 18745 lb (8502.6 kg) |
| Fuel Capacity | 41 gal (155.2 L) |
| Cooling System Fluid Capacity | 4.5 gal (17 L) |
| Engine Oil Capacity | 2.3 gal (8.5 L) |
| Final Drive Fluid Capacity - Each | 1.8 gal (6.6 L) |
| Hydraulic System Fluid Capacity | 18 gal (68.1 L) |
| Static Tipping Load | 11800 lb (5352.4 kg) |
| Breakout Force - Std Bucket | 15735 lb (70 kN) |
| Bucket Capacity - Struck | 1.1 yd3 (0.9 m3) |
| Bucket Capacity - Heaped | 1.3 yd3 (1 m3) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Max Speed | 5.9 mph (9.5 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 31 gal/min (117.4 L/min) |
| Relief Valve Pressure | 2600 psi (17926.4 kPa) |
