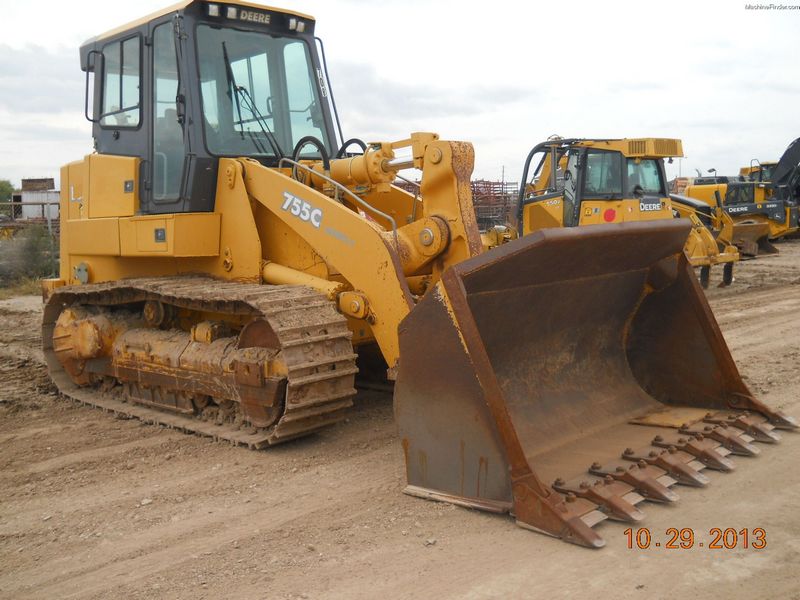

John Deere 755C Series II
Browse All John Deere or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 22.42 ft in (6832 mm) |
| Ground Clearance | 1.4 ft in (426 mm) |
| Width To Outside Of Tracks | 7.58 ft in (2308 mm) |
| Height To Top Of Cab | 10.84 ft in (3304 mm) |
| Clearance At Full Height And Dump | 10.13 ft in (3085 mm) |
| Reach At Dump Height | 3.92 ft in (1192 mm) |
| Length To Front Of Track | 15.76 ft in (4801 mm) |
Undercarriage
| Track Gauge | 70.87 in (1800 mm) |
| Length Of Track On Ground | 8.77 ft in (2673 mm) |
| Number Of Shoes Per Side | 39 |
| Ground Contact Area | 4210 in2 (2.72 m2) |
| Ground Pressure | 11 psi (75.85 kPa) |
| Number Of Track Rollers Per Side | 6 |
| Track Shoe Width | 20 in (508 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2245 |
| Engine Model | D 926 T-EA2 |
| Net Power | 177 hp (132 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 678 lb ft (919.3 Nm) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1000 rpm |
| Displacement | 610 cu in (10 L) |
Operational
| Operating Weight | 46300 lb (21001.4 kg) |
| Fuel Capacity | 84.5 gal (319.9 L) |
| Cooling System Fluid Capacity | 15.3 gal (58 L) |
| Engine Oil Capacity | 5.8 gal (22 L) |
| Final Drive Fluid Capacity - Each | 18 gal (68.2 L) |
| Hydraulic System Fluid Capacity | 46.2 gal (174.9 L) |
| Static Tipping Load | 30412.8 lb (13795 kg) |
| Breakout Force - Std Bucket | 37080 lb (165 kN) |
| Bucket Capacity - Heaped | 3.2 yd3 (2.5 m3) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Max Speed | 6.8 mph (11 km/h) |
Hydraulic
| Pump Type | Variable-Displacement piston pump with load-sensing proportional pump flow control |
| Pump Flow Capacity | 55 gal/min (208.2 L/min) |
| Relief Valve Pressure | 3770 psi (25993.3 kPa) |
| Raise Time | 6.5 sec |
| Dump Time | 2.1 sec |
| Lower Time | 1.5 sec |
