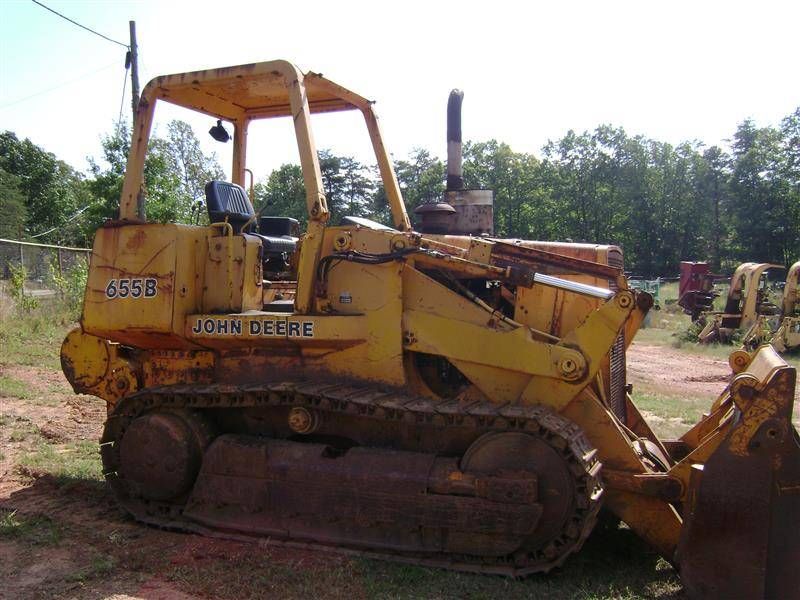

John Deere 655B
Browse All John Deere or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 18.55 ft in (5652 mm) |
| Ground Clearance | 14 ft in (356 mm) |
| Width To Outside Of Tracks | 7.06 ft in (2151 mm) |
| Height To Top Of Cab | 10.13 ft in (3086 mm) |
| Clearance At Full Height And Dump | 9.21 ft in (2807 mm) |
| Reach At Dump Height | 4 ft in (1219 mm) |
| Length To Front Of Track | 18.55 ft in (5652 mm) |
Undercarriage
| Track Gauge | 64 in (1625 mm) |
| Length Of Track On Ground | 7.57 ft in (2306 mm) |
| Number Of Shoes Per Side | 40 |
| Ground Contact Area | 2724 in2 (1.76 m2) |
| Ground Pressure | 11.9 psi (82 kPa) |
| Number Of Track Rollers Per Side | 1 |
| Track Shoe Width | 15 in (381 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Net Power | 120 hp (89.5 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 375 lb ft (508.5 Nm) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1300 rpm |
| Displacement | 414 cu in (6.8 L) |
Operational
| Operating Weight | 32400 lb (14695 kg) |
| Fuel Capacity | 73 gal (276.3 L) |
| Cooling System Fluid Capacity | 7 gal (26.5 L) |
| Engine Oil Capacity | 5 gal (18.9 L) |
| Final Drive Fluid Capacity - Each | 3.5 gal (13.2 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Static Tipping Load | 19100 lb (8660 kg) |
| Breakout Force - Std Bucket | 24800 lb (110 kN) |
| Bucket Capacity - Struck | 1.7 yd3 (1.3 m3) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 amps |
| Max Speed | 6.5 mph (10.5 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 54 gal/min (204 L/min) |
| Relief Valve Pressure | 2250 psi (15514 kPa) |
| Raise Time | 5.9 sec |
| Dump Time | 1.3 sec |
| Lower Time | 3.3 sec |
