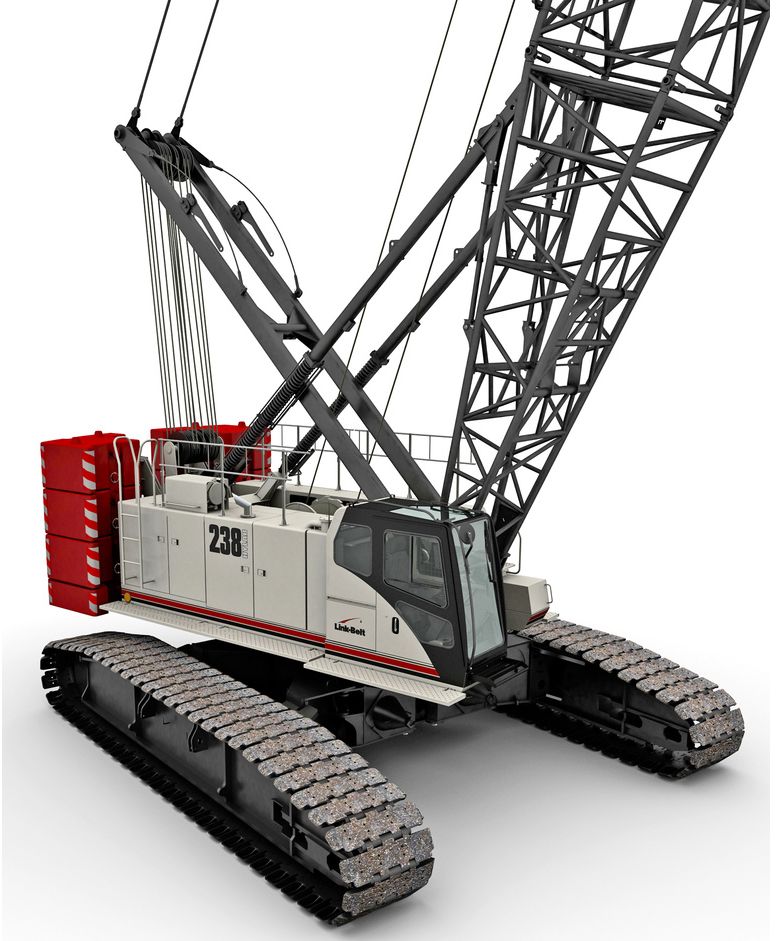

Link-Belt 238 HSL
Contents:
| Number Of Cylinders | 6 |
| Engine Make | Cummins QSB |
| Engine Model | 6.7 |
| Gross Power | 270 hp (201.4 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 6.7 L |
| Max Torque | 730 lb ft (989.8 Nm) |
| Torque Measured @ | 1500 rpm |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
| Operating Weight | 262677 lb (119148.3 kg) |
| Fuel Capacity | 122 gal (461.9 L) |
| Operating Pressure | 4553 psi (31391.9 kPa) |
| Reservoir | 84.5 gal (319.9 L) |
| Min Working Radius | 1.8 ft in (0.6 m) |
| Max Working Radius | 3.1 ft in (1 m) |
| Swing Speed | 1.7 rpm |
| Shoe Width | 3.7 ft in (1120 mm) |
| Transport Length | 26 ft in (7910 mm) |
| Transport Width | 9.5 ft in (2870 mm) |
| Operating Width | 17.8 ft in (5425.5 mm) |
| Transport Height | 12.8 ft in (3900 mm) |
| Ground Clearance | 1.6 ft in (470 mm) |
| Tail Swing Radius | 16.9 ft in (5150 mm) |
