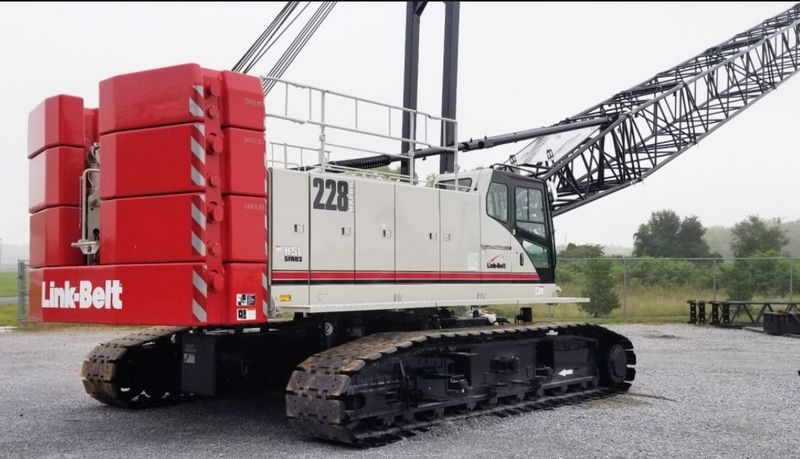

Link-Belt 228 HSL
Browse All Link-Belt or Crawler Crane Models
Contents:
Electrical System
| Voltage | 24 V |
| Batteries | 12 V |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins QSB |
| Engine Model | 6.7 |
| Gross Power | 270 hp (201.4 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 6.8 L |
| Max Torque | 730 lb ft (989.8 Nm) |
| Torque Measured @ | 1500 rpm |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
Operational
| Operating Weight | 235041 lb (106612.9 kg) |
| Fuel Capacity | 122 gal (461.9 L) |
| Operating Voltage | 24 V |
Hydraulic System
| Operating Pressure | 4551 psi (31378.1 kPa) |
| Reservoir | 85 gal (321.8 L) |
Boom
| Min Height @ Max Raise Angle | 45 ft in (13.8 m) |
| Max Height @ Max Raise Angle - No Jib | 160.5 ft in (49 m) |
| Max Elevating Angle | 80 degrees |
| Min Working Radius | 11.3 ft in (3.5 m) |
| Swing Speed | 2.5 rpm |
Dimensions
| Shoe Width | 3 ft in (910 mm) |
| Transport Height | 0.2 ft in (39 mm) |
| Ground Clearance | 1.4 ft in (410 mm) |
| Tail Swing Radius | 15.2 ft in (4630 mm) |
