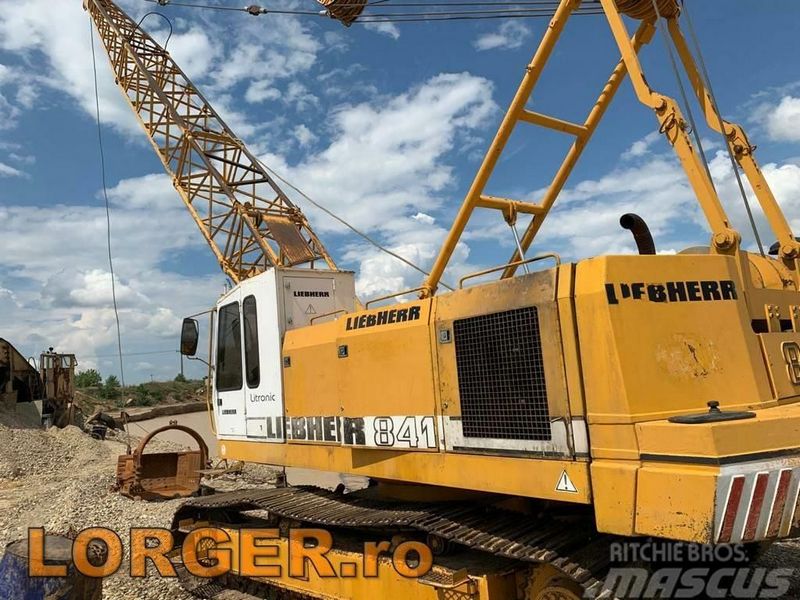

Liebherr HS841 HD
Browse All Liebherr or Crawler Crane Models
Contents:
Engine
| Engine Make | Mercedes Benz |
| Engine Model | OM 442 A |
| Gross Power | 358.1 hp (267 kw) |
| Power Measured @ | 1900 rpm |
Operational
| Operating Weight | 88800 lb (40279 kg) |
| Fuel Capacity | 116.3 gal (440 L) |
| Hydraulic System Fluid Capacity | 174.4 gal (660 L) |
| Operating Voltage | 28 V |
| Alternator Supplied Amperage | 95 amps |
Undercarriage
| Width Of Shoes | 27.6 in (700 mm) |
| Ground Pressure | 10 psi (68.7 kPa) |
Boom
| Swing Speed | 3.8 rpm |
Dimensions
| Transport Width | 10.9 ft in (3300 mm) |
| Transport Height | 11 ft in (3340 mm) |
| Ground Clearance | 1.4 ft in (422 mm) |
| Tail Swing Radius | 12.5 ft in (3785 mm) |
