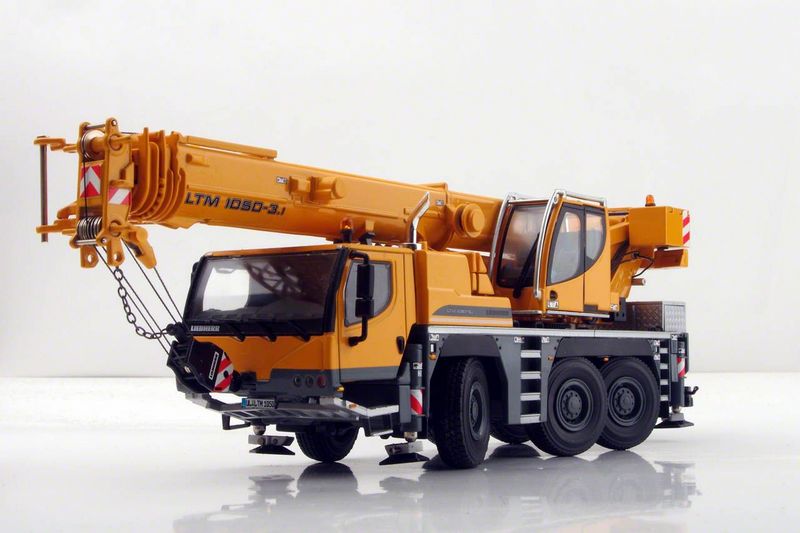

Liebherr LTM1050-3.1
Browse All Liebherr or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 37.41 ft in (11.4 m) |
| Max Height @ Max Raise Angle - No Jib | 124.68 ft in (38 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 111.55 ft in (34 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 110231.14 lb (50000 kg) |
| Swing Speed | 1.9 rpm |
Dimensions
| Transport Length | 37.82 ft in (11527 mm) |
| Transport Width | 14.77 ft in (4500 mm) |
| Transport Height | 12.42 ft in (3785 mm) |
| Carrier Length | 29.89 ft in (9110 mm) |
| Upper Structure Tail Swing Radius | 11.51 ft in (3508 mm) |
Carrier Engine
| Make | Liebherr |
| Model | D926L A6 |
| Net Power | 367 hp (273.7 kw) |
| Max Torque | 1268.7 lb ft (1720 Nm) |
Operational
| Number Of Axels | 3 |
| Carrier Fuel Capacity | 92.5 gal (350 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 170 amps |
| Tire Size | 14 R25 |
Transmission
| Transmission Type | ZF 12-speed gear box with automatic control system AS-TRONIC |
| Number Of Forward Gears | 12 |
