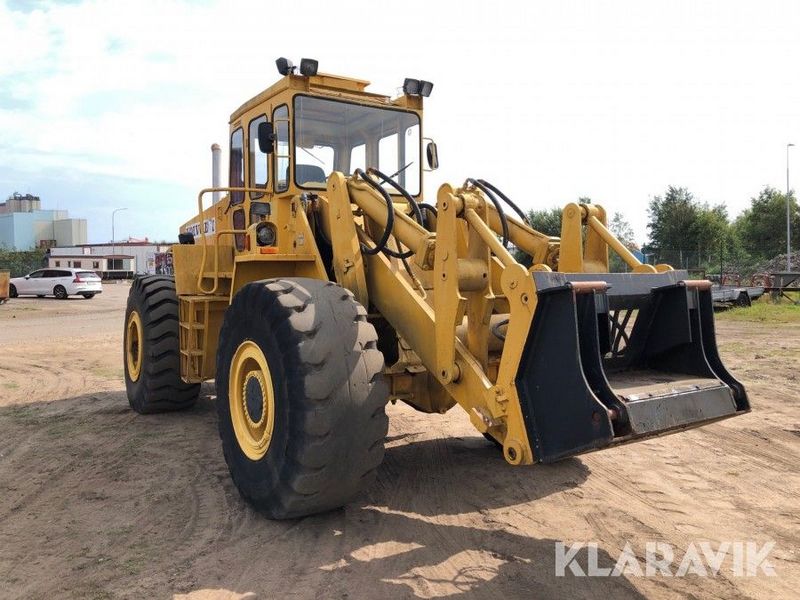

Volvo LM1641
Contents:
Dimensions
| Length With Blade On Ground | 26.09 ft in (7950 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Width Over Wheels | 9.55 ft in (2910 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Wheelbase | 11.39 ft in (3470 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2497 |
| Engine Model | TD 100A |
| Gross Power | 205 hp (152.9 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 585.9 cu in (9.6 L) |
| Max Torque | 570.9 lb ft (774 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | direct injection |
Operational
| Operating Weight | 50706.4 lb (23000 kg) |
| Fuel Capacity | 64.8 gal (245 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Engine Oil Capacity | 8.2 gal (31 L) |
| Cooling System Fluid Capacity | 15.9 gal (60 L) |
| Static Tipping Load | 25794.1 lb (11700 kg) |
| Operating Voltage | 24 V |
Transmission
| Transmission Type | power shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Wheels
| Front Wheels Drum Width | 26.4 in (670 mm) |
| Front Wheels Drum Diameter | 52.2 in (1325 mm) |
| Rear Wheels Drum Width | 26.4 in (670 mm) |
| Rear Wheels Drum Diameter | 52.2 in (1325 mm) |
Blade
| Blade Capacity | 4.2 yd3 (3.2 m3) |
| Width | 10.2 ft in (3100 mm) |
