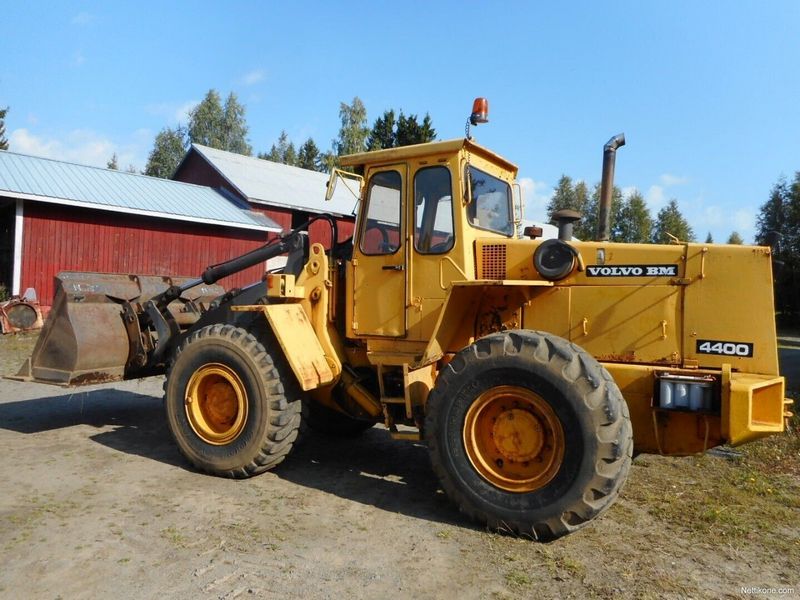

Volvo 4400
Contents:
Dimensions
| Length With Blade On Ground | 21.89 ft in (6670 mm) |
| Ground Clearance | 1.5 ft in (455 mm) |
| Width Over Wheels | 7.94 ft in (2420 mm) |
| Height To Top Of Cab | 9.98 ft in (3040 mm) |
| Wheelbase | 9.39 ft in (2860 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 60 B |
| Net Power | 140.9 hp (105 kw) |
| Gross Power | 126.1 hp (94 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 334.5 cu in (5.5 L) |
| Max Torque | 376.2 lb ft (510 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | turbo |
Operational
| Operating Weight | 28494.8 lb (12925 kg) |
| Fuel Capacity | 51.6 gal (195 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Cooling System Fluid Capacity | 7.7 gal (29 L) |
| Transmission Fluid Capacity | 7.2 gal (27 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
| Static Tipping Weight | 20392.8 lb (9250 kg) |
Transmission
| Transmission Type | full power shift |
Wheels
| Front Wheels Drum Width | 19.7 in (500 mm) |
| Front Wheels Drum Diameter | 47.3 in (1200 mm) |
| Rear Wheels Drum Width | 19.7 in (500 mm) |
| Rear Wheels Drum Diameter | 47.3 in (1200 mm) |
Blade
| Blade Capacity | 2.5 yd3 (1.9 m3) |
| Width | 8.3 ft in (2500 mm) |
