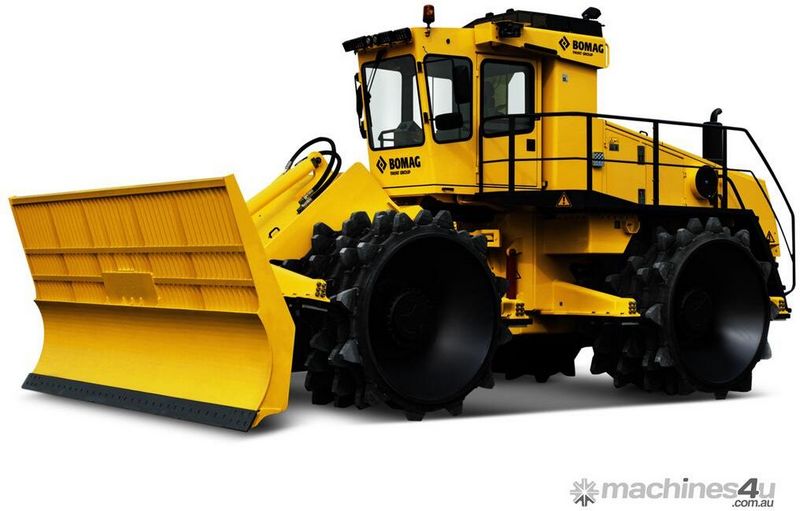

Bomag BC1172RB2
Contents:
Dimensions
| Length With Blade On Ground | 30.93 ft in (9425 mm) |
| Ground Clearance | 2.51 ft in (765 mm) |
| Width Over Wheels | 14.77 ft in (4500 mm) |
| Height To Top Of Cab | 15.9 ft in (4845 mm) |
| Wheelbase | 13.46 ft in (4100 mm) |
Engine
| Number Of Cylinders | 8 |
| Engine Make | 2349 |
| Engine Model | TCD 2015V08 |
| Gross Power | 598 hp (446 kw) |
| Power Measured @ | 2100 rpm |
Operational
| Operating Weight | 120000 lb (54431.1 kg) |
| Fuel Capacity | 264.2 gal (1000 L) |
| Hydraulic System Fluid Capacity | 155.9 gal (590 L) |
| Engine Oil Capacity | 11.9 gal (45 L) |
| Operating Voltage | 24 V |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed | 7.5 mph (12 km/h) |
Wheels
| Front Wheels Drum Width | 55.2 in (1400 mm) |
| Front Wheels Drum Diameter | 86.7 in (2200 mm) |
| Rear Wheels Drum Width | 55.2 in (1400 mm) |
| Rear Wheels Drum Diameter | 86.7 in (2200 mm) |
Blade
| Height | 87.6 in (2225 mm) |
| Width | 17.1 ft in (5200 mm) |
