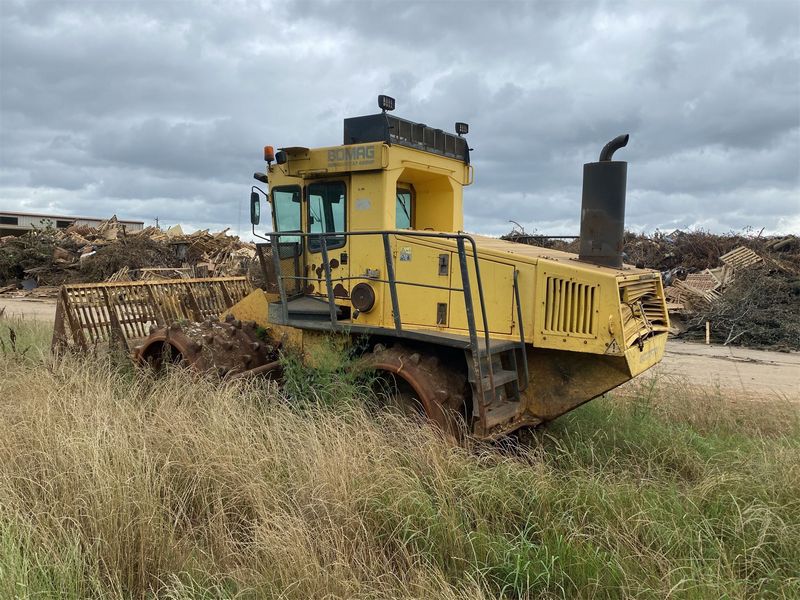

Bomag BC772RB
Contents:
Dimensions
| Length With Blade On Ground | 26.65 ft in (8120 mm) |
| Ground Clearance | 1.91 ft in (580 mm) |
| Width Over Wheels | 12.39 ft in (3775 mm) |
| Height To Top Of Cab | 13.46 ft in (4100 mm) |
| Wheelbase | 11.49 ft in (3500 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | BF6M1015CP |
| Gross Power | 442.6 hp (330 kw) |
Operational
| Operating Weight | 81205 lb (36834 kg) |
| Fuel Capacity | 132.1 gal (500 L) |
| Hydraulic System Fluid Capacity | 92.5 gal (350 L) |
| Engine Oil Capacity | 6.9 gal (26 L) |
| Operating Voltage | 24 V |
Transmission
| Max Speed | 7.5 mph (12 km/h) |
Wheels
| Front Wheels Drum Width | 53.2 in (1350 mm) |
| Front Wheels Drum Diameter | 63.8 in (1620 mm) |
| Rear Wheels Drum Width | 44.3 in (1125 mm) |
| Rear Wheels Drum Diameter | 63.8 in (1620 mm) |
Blade
| Height | 76.8 in (1950 mm) |
| Width | 14.3 ft in (4356 mm) |
