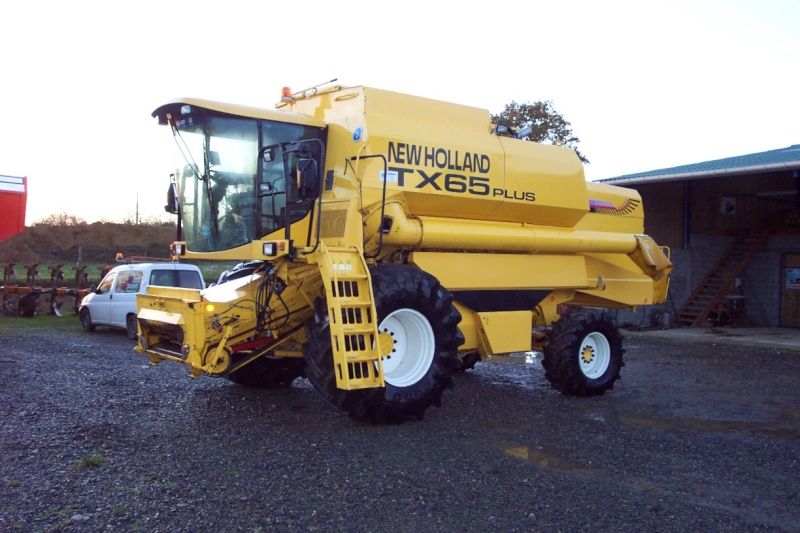

Salford TX65 Plus
Contents:
Dimensions
| Overall Length | 26.65 ft in (8120 mm) |
| Width Over Tires | 10.54 ft in (3211 mm) |
| Height To Top Of Isomount Cab | 12.96 ft in (3950 mm) |
Engine
| Engine Model | NH 675 TA/CB |
| Power | 238 hp (177.5 kw) |
| Power Measured @ | 2100 rpm |
Operational
| Operating Weight W/O Attachment | 22983.2 lb (10425 kg) |
| Fuel Capacity | 158.6 gal (600 L) |
| Transmission Type | hydrostatic |
| Number Of Gears | 4 |
Threshing
| Rotor Diameter | 23.9 in (606 mm) |
| Rotor Length | 51.2 in (1300 mm) |
| Rotor Speed - Low | 385 rpm |
| Rotor Speed - High | 1140 rpm |
| Concave Area | 1116.1 in2 (0.8 m2) |
| Beater Grate Area | 775.1 in2 (0.5 m2) |
Separating
| Separator Type | rotary |
Cleaning System
| Total Cleaning Area | 8370.1 in2 (5.4 m2) |
| Cleaning Fan Speed - Low | 435 rpm |
| Cleaning Fan Speed - High | 860 rpm |
Grain Handling
| Grain Tank Capacity | 227.1 bu (8000 L) |
| Unloading Speed | 2.1 bu/sec (72 L/sec) |
