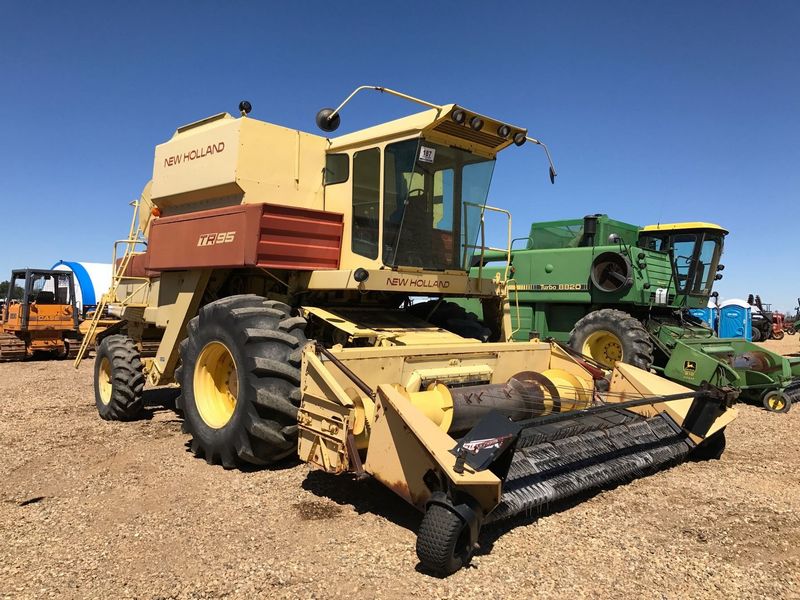

New Holland TR95
Browse All New Holland or Combine Models
Contents:
Dimensions
| Wheelbase | 10.73 ft in (3270 mm) |
| Transport Length | 350.2 in (8895 mm) |
| Transport Width | 14.6 ft in (4.45 m) |
| Turning Radius | 20.71 ft in (6310 mm) |
| Transport Height | 165.36 in (4200 mm) |
| Unloader Discharge Height | 13.46 ft in (4.1 m) |
| Unloader Reach | 9.85 ft in (3 m) |
| Unloader Clearance | 13.05 ft in (3.98 m) |
Engine
| Number Of Cylinders | 8 |
| Engine Make | Caterpillar |
| Engine Model | 3208 |
| Power Boost Power | 225.3 hp (168 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 635.9 cu in (10.5 L) |
Operational
| Fuel Capacity | 100.2 gal (379 L) |
Threshing
| Rotor Diameter | 26.9 in (683 mm) |
| Rotor Length | 85.1 in (2160 mm) |
| Rotor Speed - Low | 635 rpm |
Tires
| Front | 2, 30.5 L x 32 R1, 10-ply |
| Rear | 2, 14.9 L x 24 R3, 6-ply |
Threshing
| Rotor Speed - High | 1630 rpm |
| Concave Area | 1007.6 in2 (0.7 m2) |
| Beater Grate Area | 868.1 in2 (0.6 m2) |
Separating
| Separating Area | 2075.5 in2 (1.4 m2) |
Cleaning System
| Cleaning Fan Speed - Low | 520 rpm |
| Cleaning Fan Speed - High | 1020 rpm |
Header
| Header Type | Centre feed |
| Width - Table | 13.1 ft in (4 m) |
| Auger Diameter | 19.8 in (502 mm) |
| Conveyor Speed | 10080 mph (16222.2 km/h) |
| Raising Time | 2.7 Sec |
| Lowering Time | 2.3 Sec |
