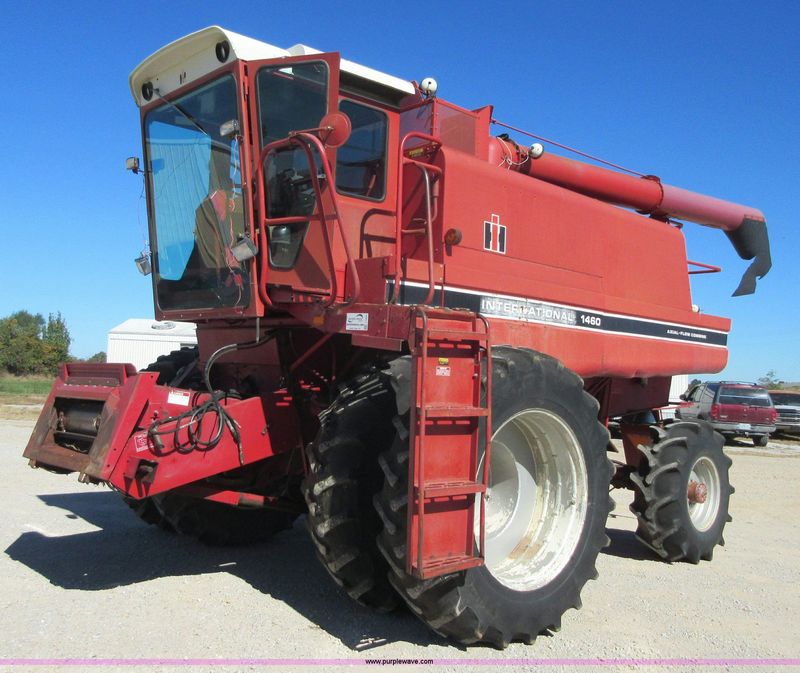

International 1460
Browse All International or Combine Models
Contents:
Dimensions
| Wheelbase | 11.42 ft in (3480 mm) |
| Transport Height | 155.91 in (3960 mm) |
| Transport Length | 327.17 in (8310 mm) |
| Transport Width | 15255.91 ft in (4650 m) |
| Unloader Clearance | 11.75 ft in (3.58 m) |
| Unloader Reach | 8.96 ft in (2.73 m) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | International |
| Engine Model | DT-436 |
| Power | 170.1 hp (126.8 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 435.8 cu in (7.2 L) |
Operational
| Operating Weight W/O Attachment | 19687.3 lb (8930 kg) |
| Fuel Capacity | 92.5 gal (350 L) |
Threshing
| Rotor Diameter | 33.9 in (860 mm) |
| Rotor Length | 107.7 in (2735 mm) |
| Rotor Speed - Low | 330 rpm |
Tires
| Front | 23.1 x 26 R 1, 10-ply |
| Rear | 10.0 x 16, 6-ply |
Threshing
| Rotor Speed - High | 1320 rpm |
| Concave Area | 1181.2 in2 (0.8 m2) |
Separating
| Separating Area | 1723.7 in2 (1.2 m2) |
Cleaning System
| Cleaning Fan Speed - Low | 360 rpm |
| Cleaning Fan Speed - High | 1010 rpm |
Grain Handling
| Grain Tank Capacity | 180 bu (6340 L) |
| Unloading Discharge Height | 12.4 ft in (3.8 m) |
Header
| Header Type | Centre feed |
| Width - Table | 13 ft in (4 m) |
| Auger Diameter | 20 in (508 mm) |
| Conveyor Speed | 9144 mph (14715.9 km/h) |
| Raising Time | 5 Sec |
| Lowering Time | Adjustable |
