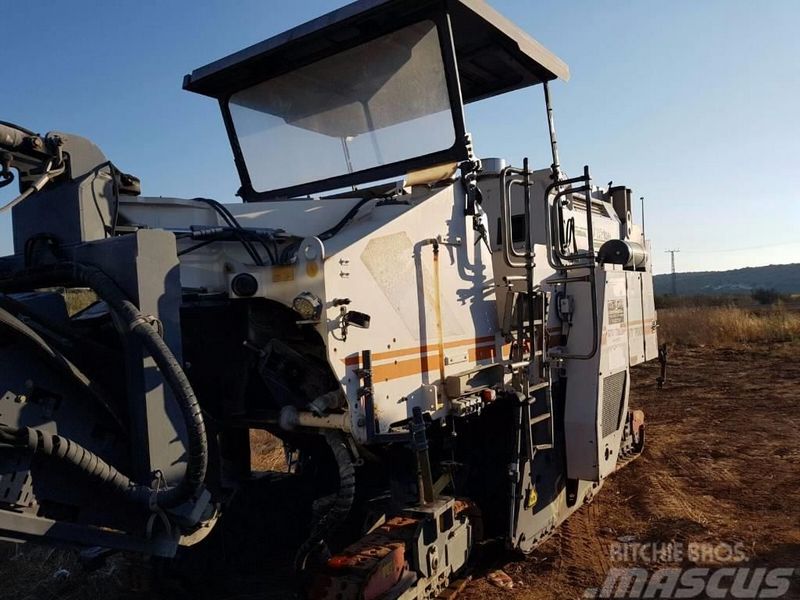

Wirtgen W1900
Browse All Wirtgen or Cold Planer Models
Contents:
Conveyor System
| Discharge Conveyor Width | 31.5 in (800 mm) |
| Collecting Conveyor Width | 31.5 in (800 mm) |
| Discharge Conveyor Swing (R/L) | 45 degrees |
Dimensions
| Operating Length | 44.46 ft in (13550 mm) |
| Shipping Width | 8.37 ft in (2550 mm) |
| Shipping Height | 9.85 ft in (3000 mm) |
| Shipping Length | 22.09 ft in (6730 mm) |
| Max Operating Height | 14.77 ft in (4500 mm) |
Engine
| Number Of Cylinders | 8 |
| Engine Make | 2346 |
| Engine Model | OM502LA |
| Gross Power | 469 hp (349.8 kw) |
| Net Power | 455 hp (339.3 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 970.3 cu in (15.9 L) |
Operational
| Operating Weight - Full Load | 61641.3 lb (27960 kg) |
| Shipping Weight - Empty | 55997.5 lb (25400 kg) |
| Fuel Capacity | 224.6 gal (850 L) |
| Hydraulic System Fluid Capacity | 71.4 gal (270 L) |
| Water Spray System Fluid Capacity | 422.7 gal (1600 L) |
| Operational Voltage | 24 V |
| Operating Speed | 96.8 ft/min (29.5 m/min) |
| Travel Speed | 2.8 mph (4.5 km/h) |
Rotary Cutter
| Cutting Width | 6.6 ft in (2000 mm) |
| Cutting Depth | 12.6 in (320 mm) |
| Cutter Diameter | 38.6 in (980 mm) |
| Number Of Tools | 162 |
| Tool Spacing | 0.6 in (15 mm) |
Tracks
| Number Of Track Units | 4 |
| Front Track Length | 5.3 ft in (1600 mm) |
| Front Track Width | 10.3 in (260 mm) |
| Rear Track Length | 5.3 ft in (1600 mm) |
| Rear Track Width | 10.3 in (260 mm) |
